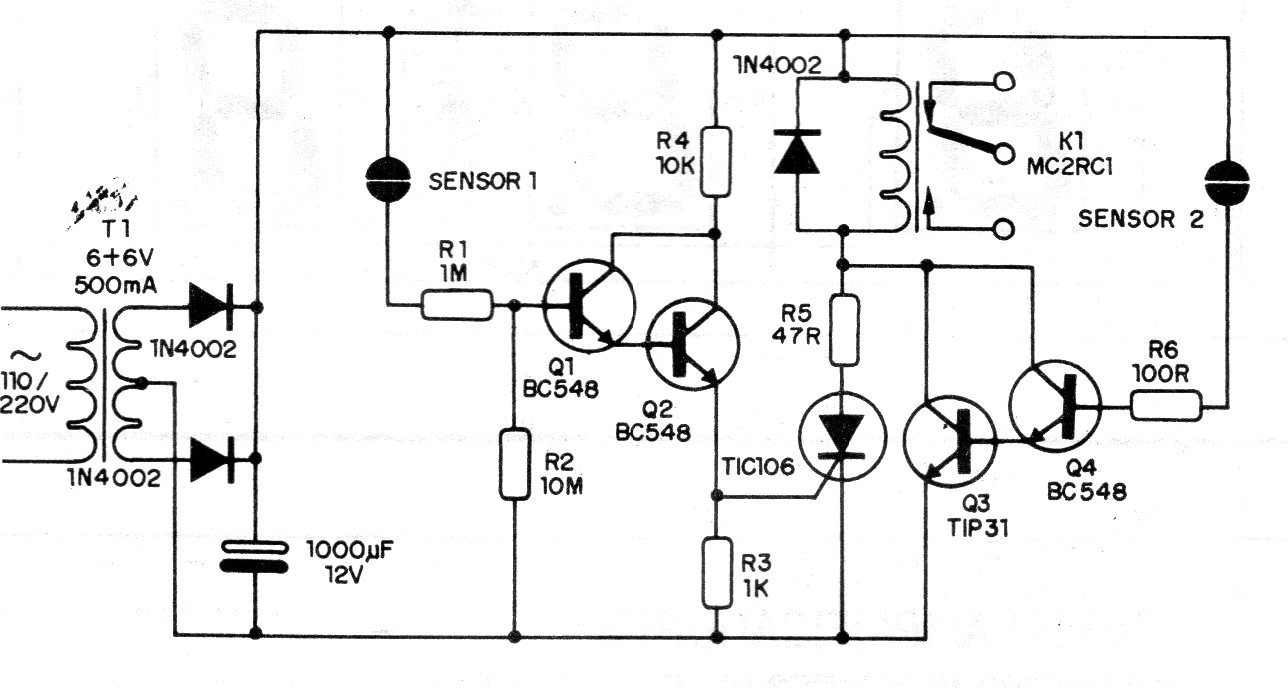

This bistable touch sensor circuit uses a relay and is very sensitive. We found it in a 1990 documentation. It can be easily implemented today, as all the components used are still common. The SCR does not need to be equipped with a heat sink. The transformer is 6 or 12 V depending on the relay voltage.
