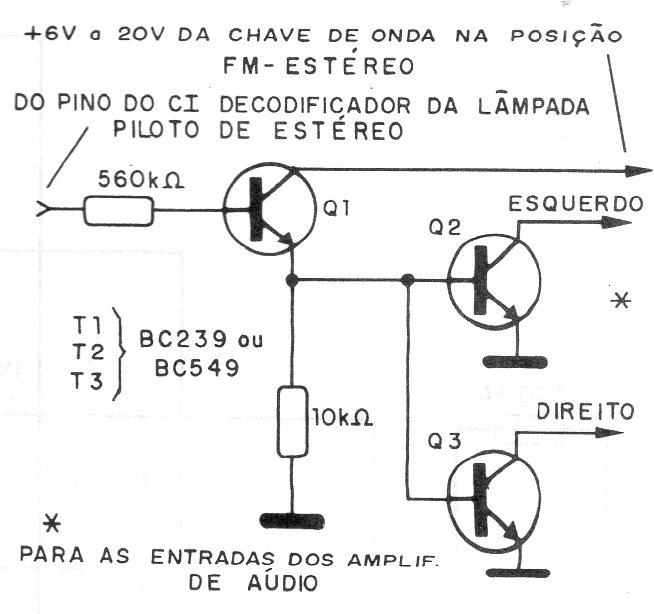

This circuit, found in a 1994 documentation, eliminates the hiss (static noise) that occurs when changing FM receiver stations. The circuit is connected to the decoder, taking advantage of the tuning signal that many receivers have and that turn on an LED.
| Clique na imagem para ampliar |
