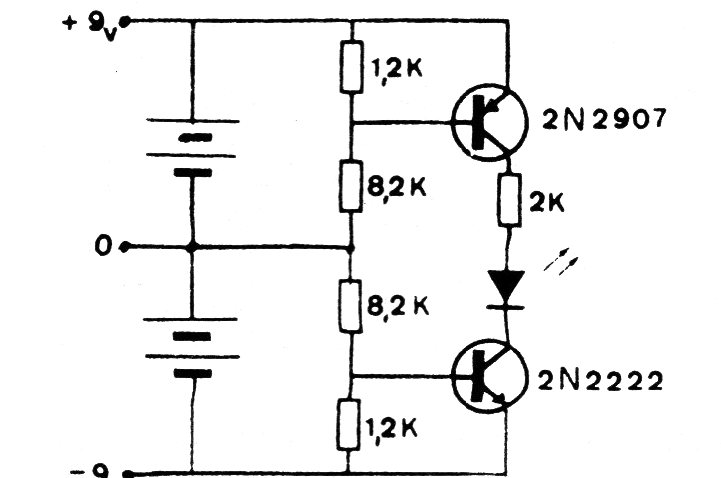

We found this circuit in an old documentation from the 70s. Its purpose is to indicate the condition of the batteries in a source. The circuit can be implemented with BC558 and BC548 transistors in a more modern version.
| Clique na imagem para ampliar |
