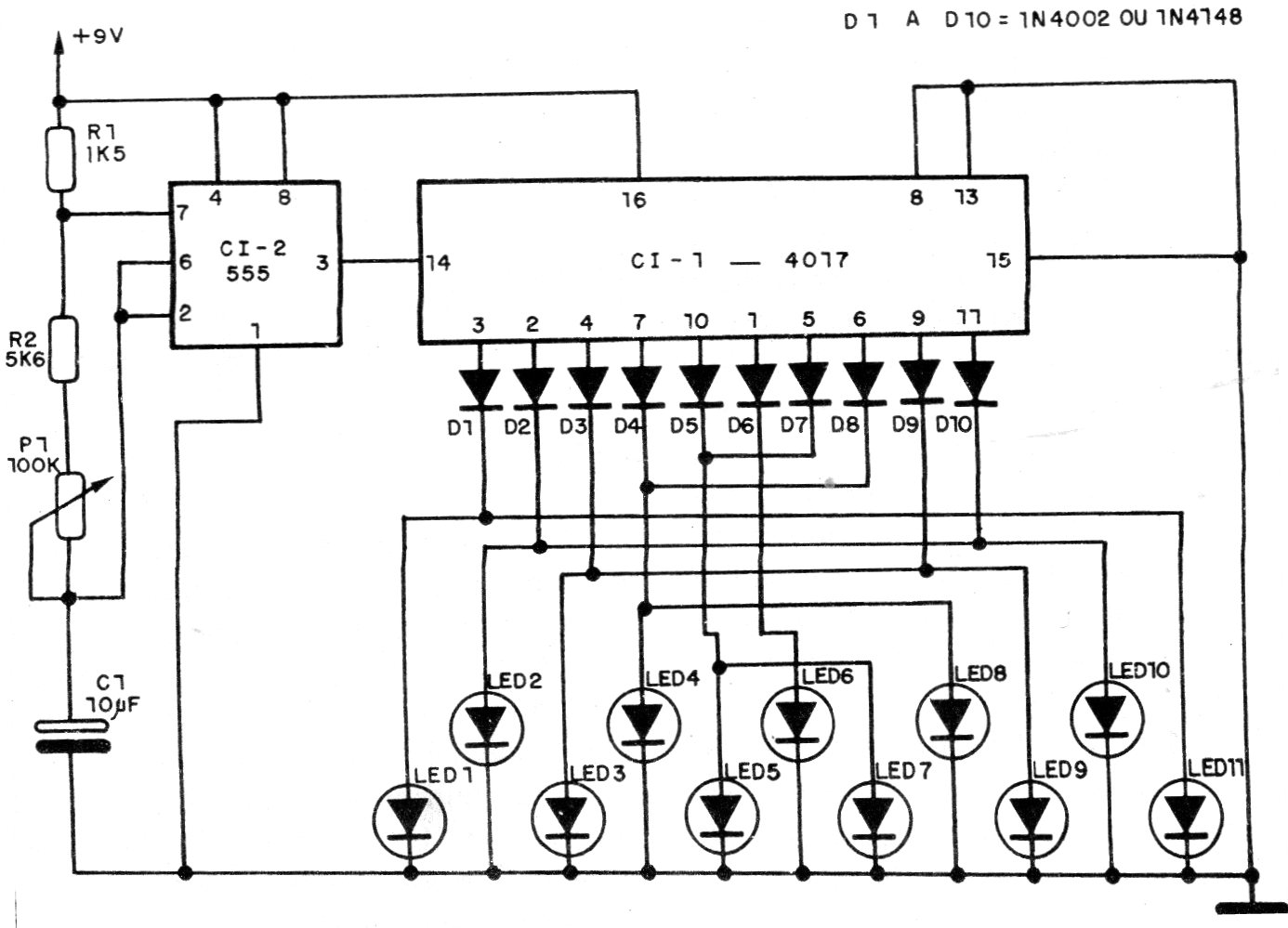

This is an LED effect that we found in a 1988 documentation. The circuit drives LEDs with a special effect of the convergence of the LEDs. The speed is set in P1 and the circuit can be powered by voltages from 6 to 9 V.
