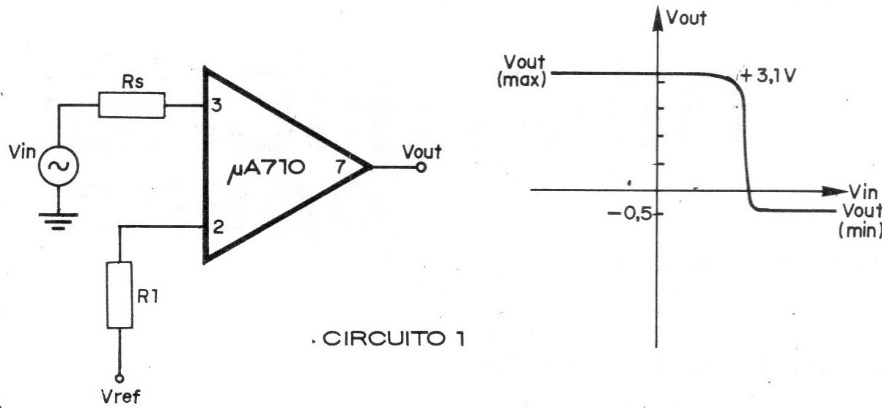

This circuit of old documentation is based on an operational amplifier that is no longer used today. However, it can be made with more modern amplifiers. The source must be symmetrical from 3 to 12 V and the reference voltage determines the switching point.
