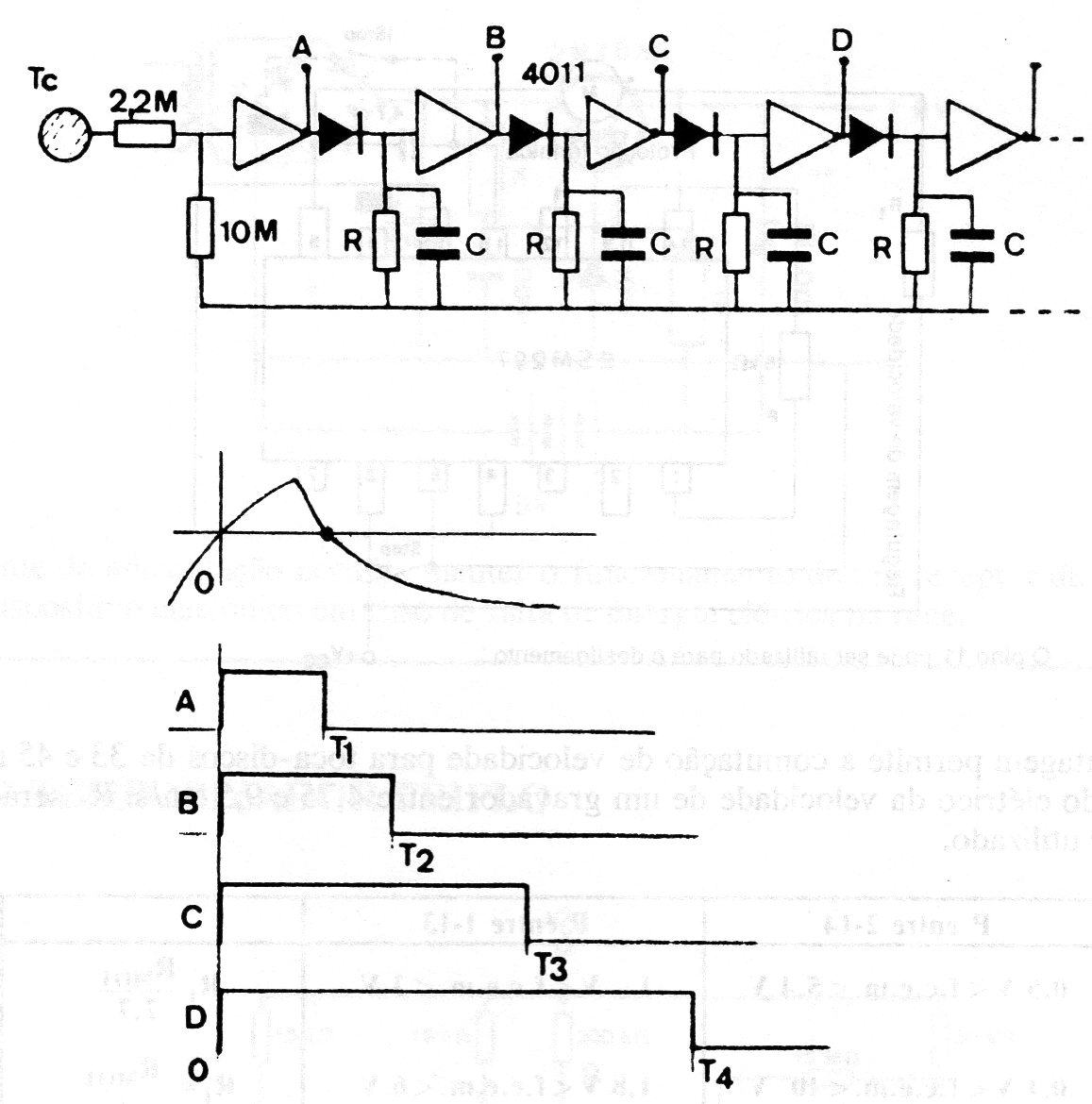

This circuit sequentially drives loads connected to its outputs or even applies the signals to the input of a microcontroller when powered by 5 V. For other applications, the voltage can be changed as appropriate. The sensor is a single flat iron, and a transformer-free source should never be used. The graphic below indicates the activation mode according to the touch on the sensor.
