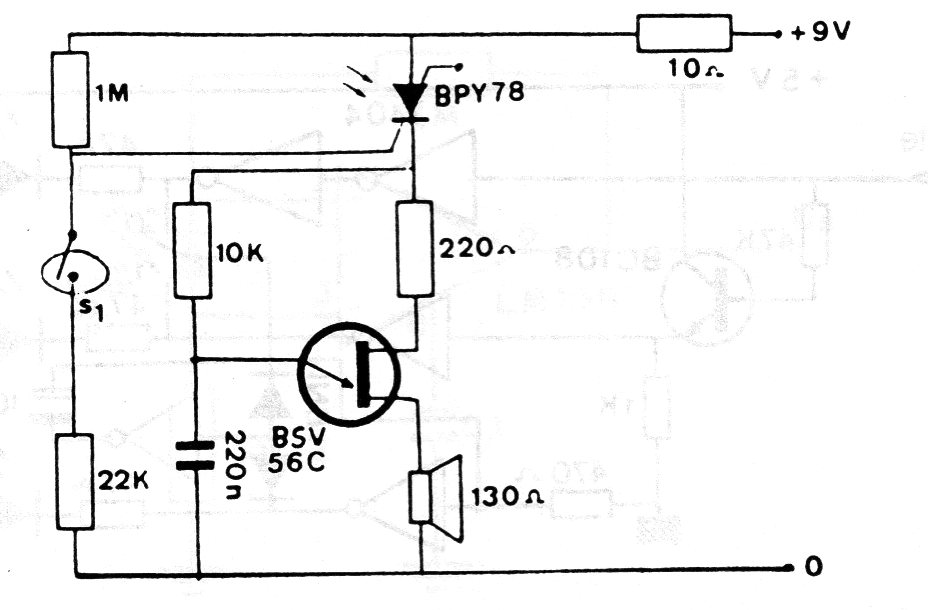

This circuit is from an old European documentation, already influencing the unijunction oscillator that feeds a small speaker. The circuit trips when the photo-SCR is illuminated or when the NC sensor next to the gate is opened. The circuit is powered by 9 V. The photo-SCR used is not a common component today.
