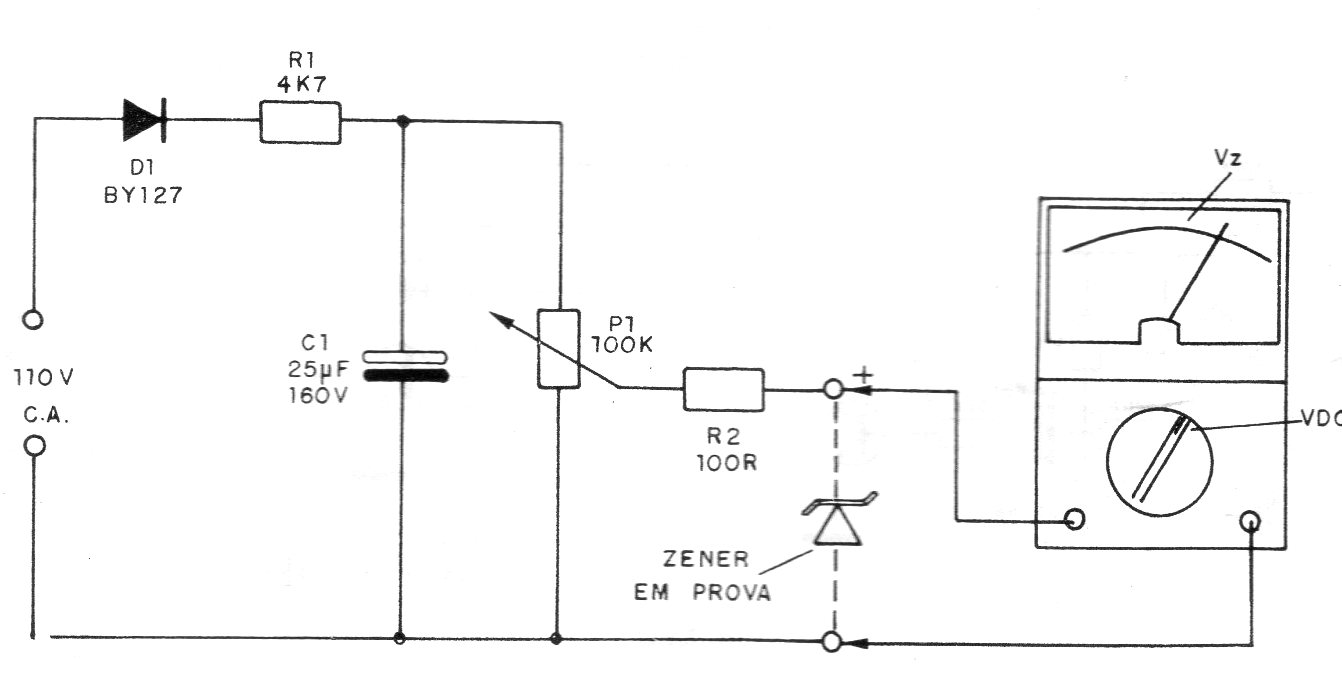

This circuit was found in a 1987 publication, but it is still valid today. What is done is to gradually adjust the output voltage until it stabilizes due to the presence of the zener. Then just read on the multimeter the value of this voltage, which is the voltage of the zener diode.
| Clique na imagem para ampliar |
