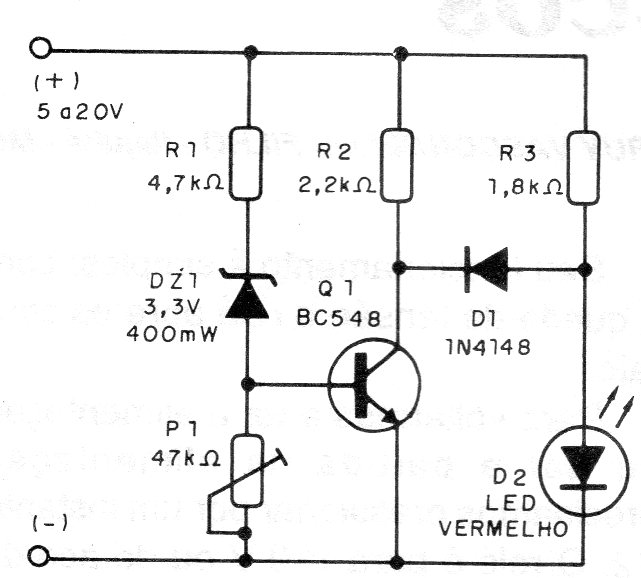

We found this simple undervoltage indicator circuit in a 1992 publication. The circuit triggers an LED when the voltage drops below the value set in the trimpot. Zeners with other values can be used according to the adjustment voltage range.
| Clique na imagem para ampliar |
