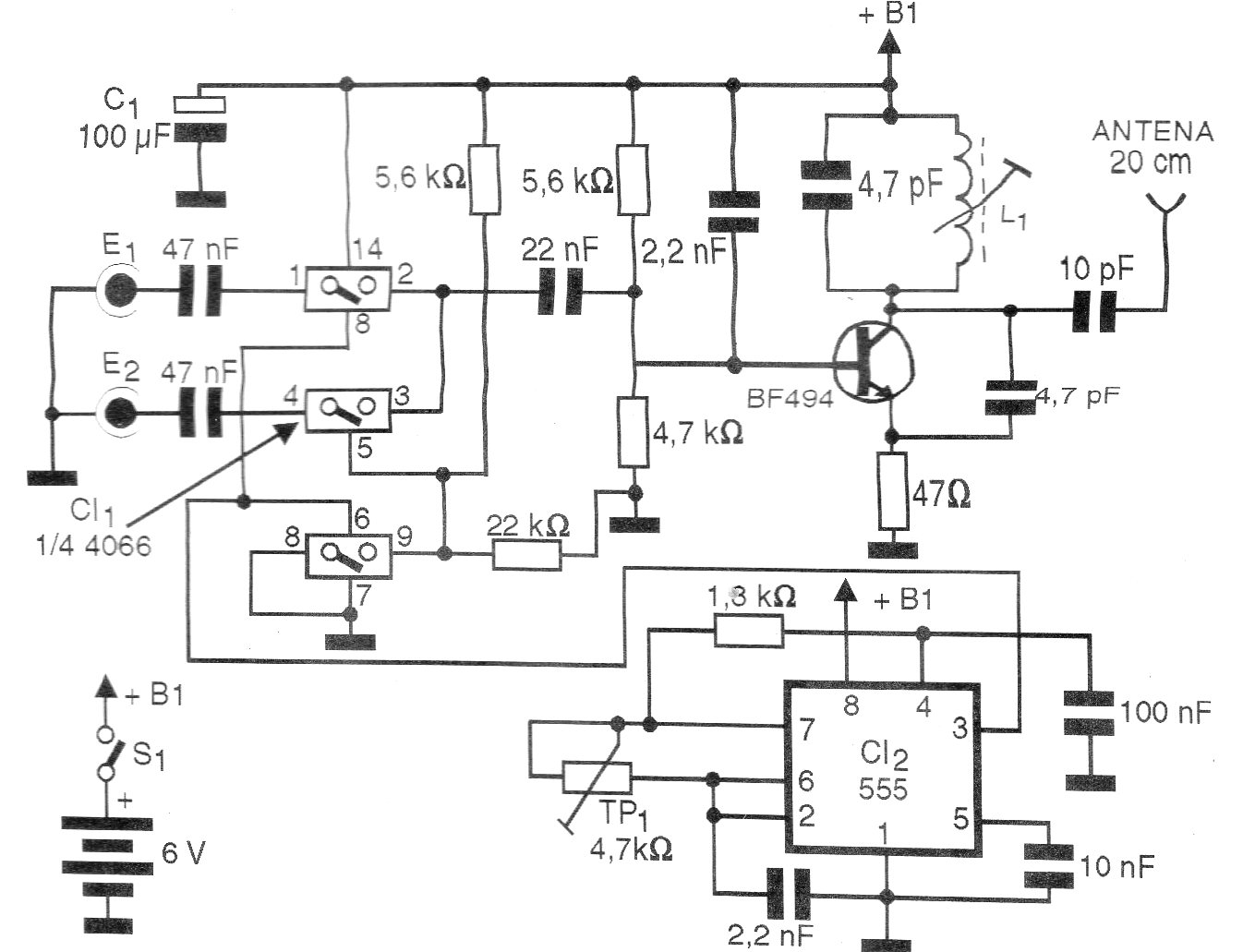

This small FM transmitter for short distances has a stereo multiplexer and can be used over an audio link or wireless phone. The components used are common and the coil consists of 4 turns of wire 28 in a shape with an adjustable 0.5 cm ferrite core. The circuit is powered by batteries and the capacitors in the RF sectors must be ceramic.
