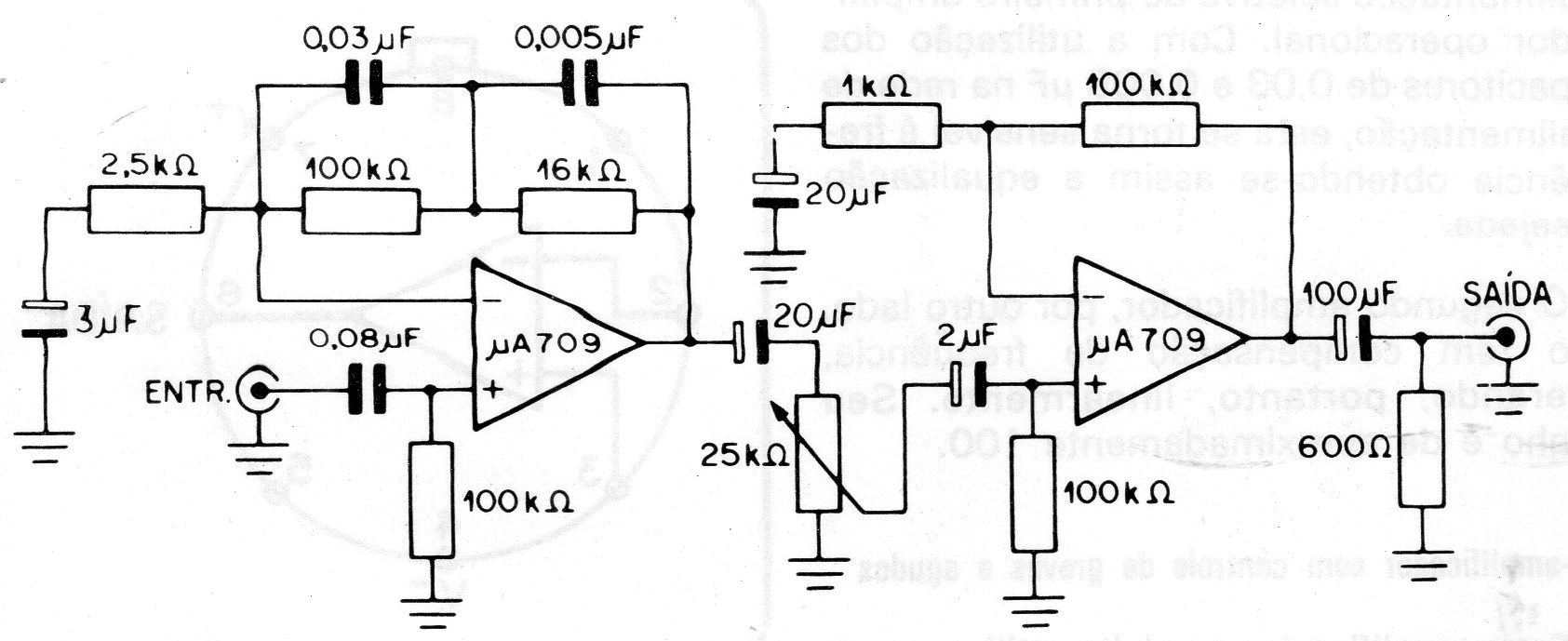

This circuit is from 1976 documentation. It uses the operational amplifier 709 which is no longer common in our market. However, the reader can implement the same configuration with other operators always remembering that the power supply must be symmetrical from 6 to 12 V.
