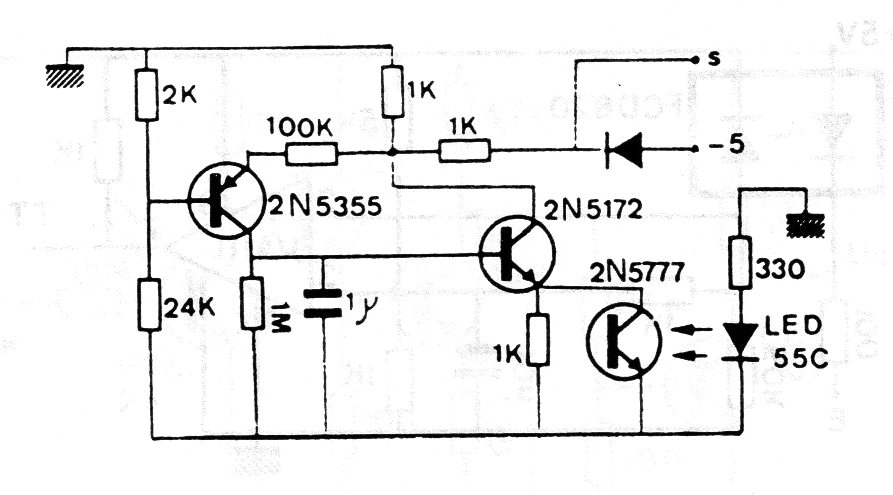

We found this circuit in an old French documentation from the 70s, but it can be assembled using current equivalent transistors and any phototransistor. The circuit produces an output that depends on the passage of the holes in front of the emitting LED. The supply is made with a 5 V power supply.
| Clique na imagem para ampliar |
