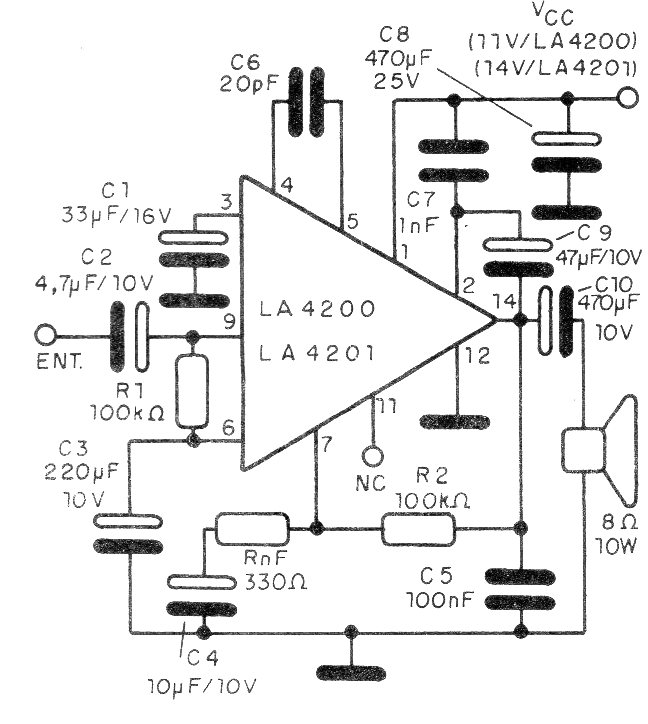

This amplifier can supply powers of 1.5 or 2.5 W depending on the integrated circuit used. The integrated circuit is not very common today, but at the time the circuit was published (1992) it was used in commercial equipment.
