RF detector (CB17363E)

Details
Written by: Newton C. Braga

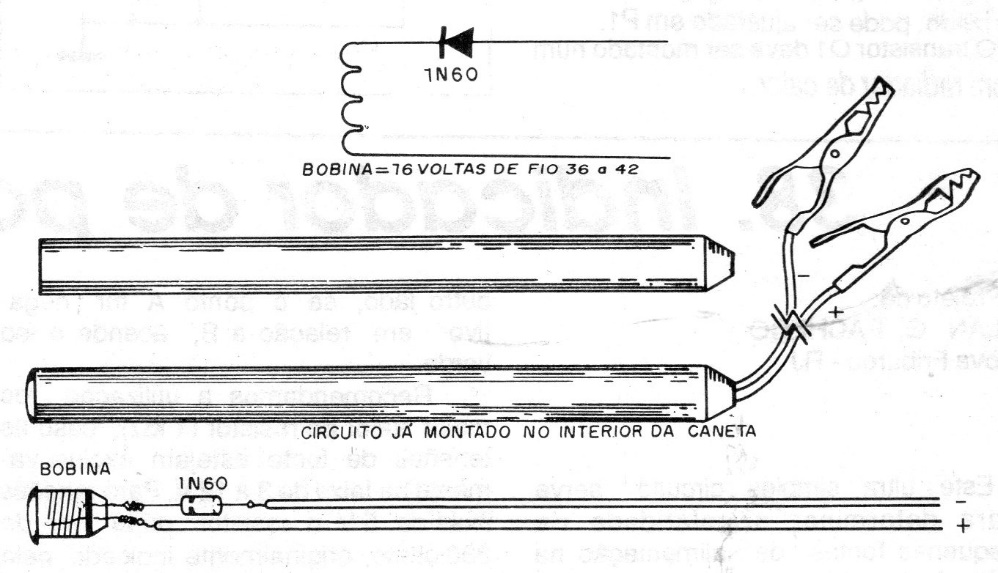

This circuit allows the detection of RF signals using the lowest range of direct currents of a common multimeter. Equivalent diodes such as 1N34 can be used. The circuit is assembled in a ballpoint tube.
