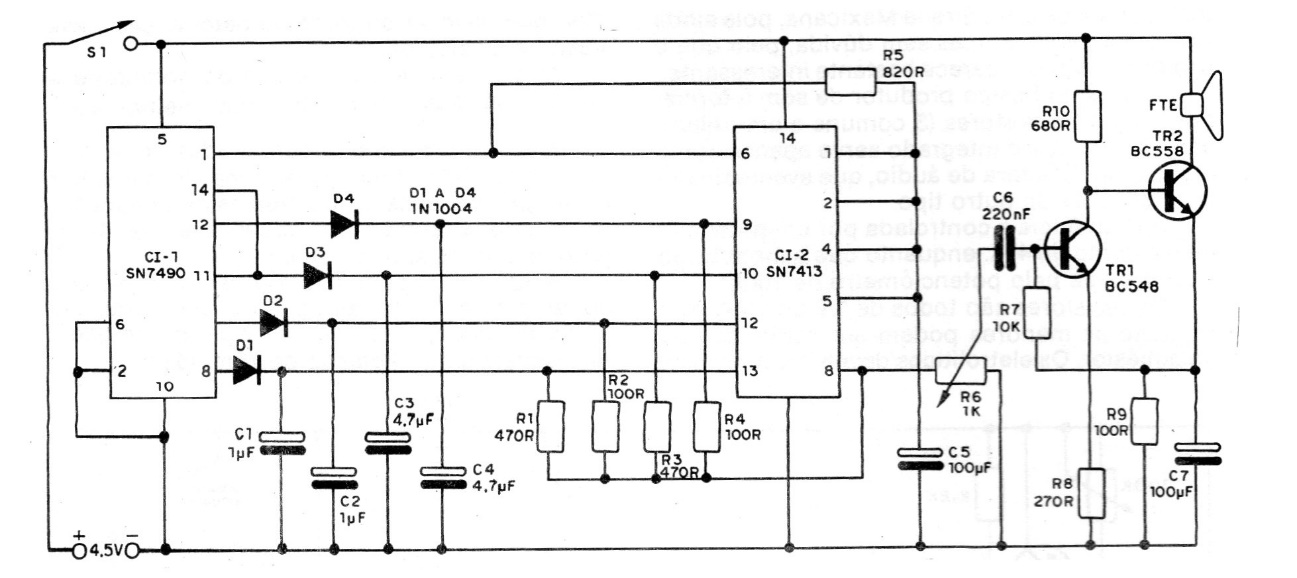

This simple TTL circuit generates sequences of musical notes that can be determined by adjusting R5 and resistors from R1 to R4. The circuit also has a transistorized power stage and as it uses TTL technology it must be supplied with voltages of 4.5 to 5 V, as indicated.
