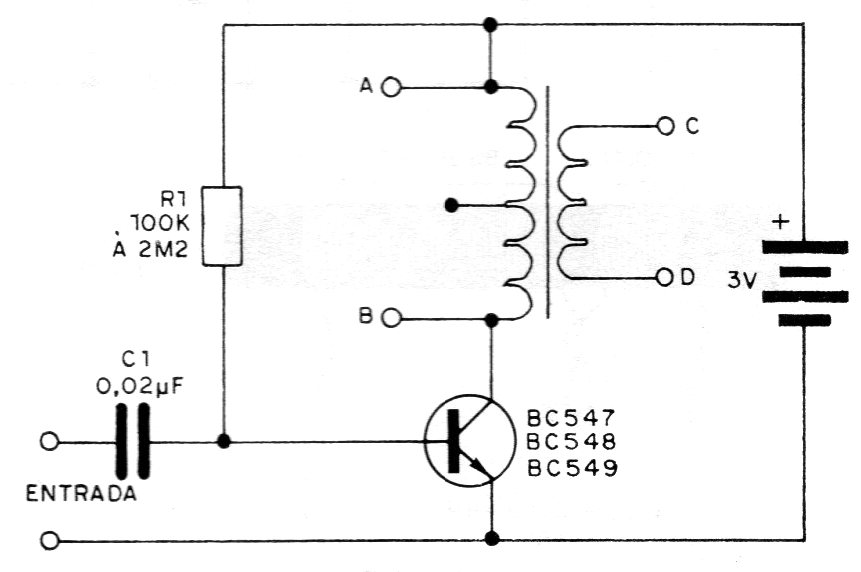

This output step with a transistor can be used in experimental radios and intercoms or as a signal follower. The circuit is from 1982. It uses an output transformer of the type found in transistor radios. The power can be done with two or four small batteries.
