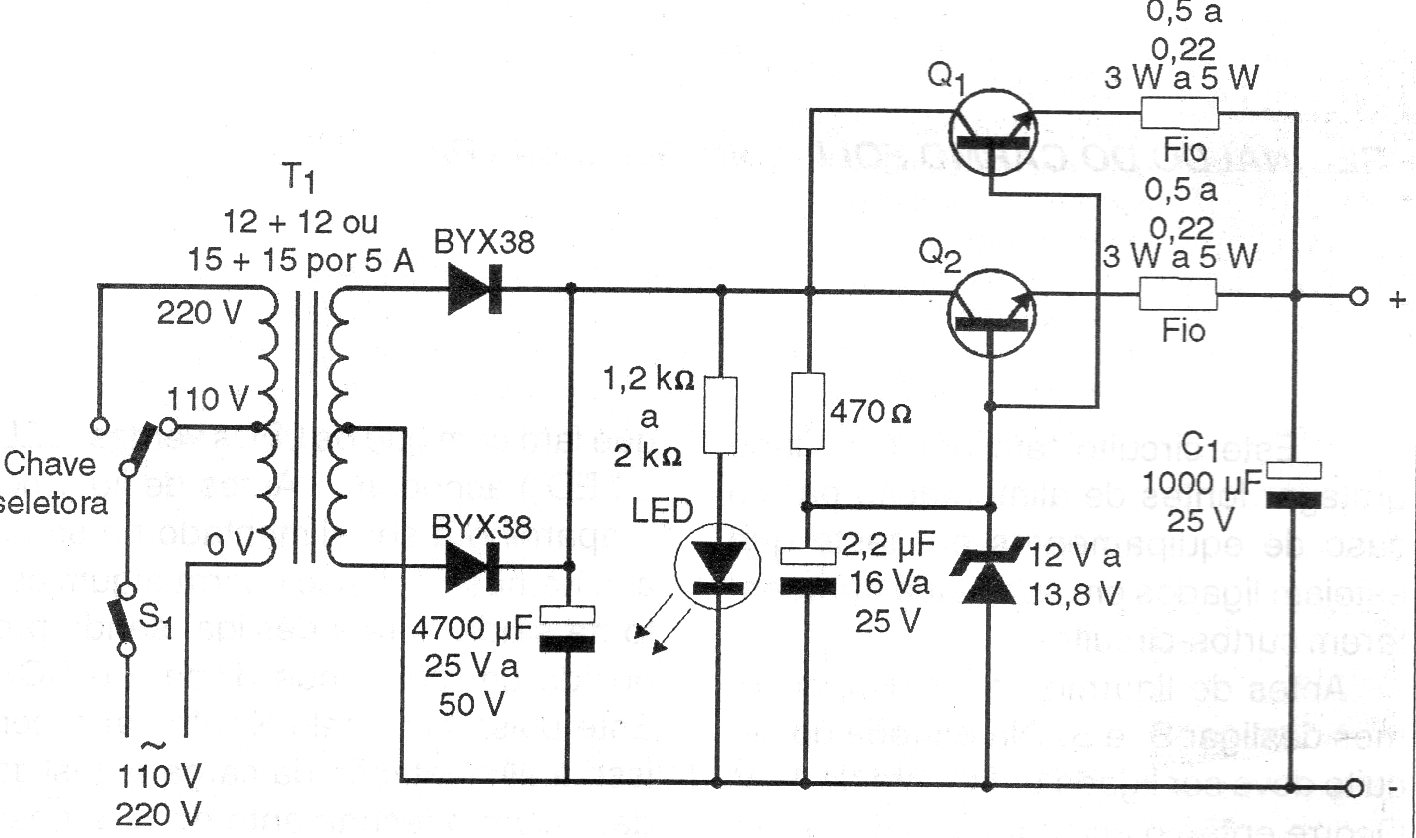

This conventional power supply uses discrete components and can provide 12 V or 13.6 V output with a maximum current of 5 A. The transistors must be equipped with heat sinks and the transformer is 12 or 15 V.
| Clique na imagem para ampliar |
12 V x 5A power supply (CB17051E)
- Details
- Written by: Newton C. Braga
