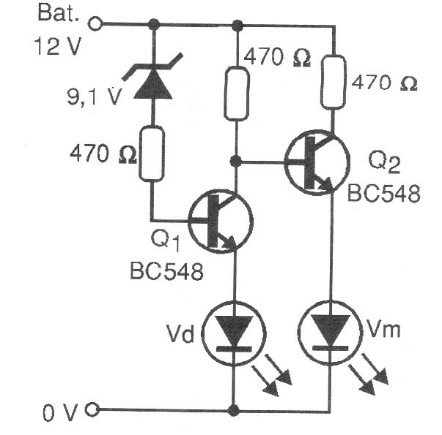

This simple indicator circuit uses two transistors indicating when the voltage of a 12 V battery is below 10 V. The zener diode determines the trigger point and the LEDs are common in two colors.
Battery Status Indicator (CB17461E)
- Details
- Written by: Newton C. Braga
