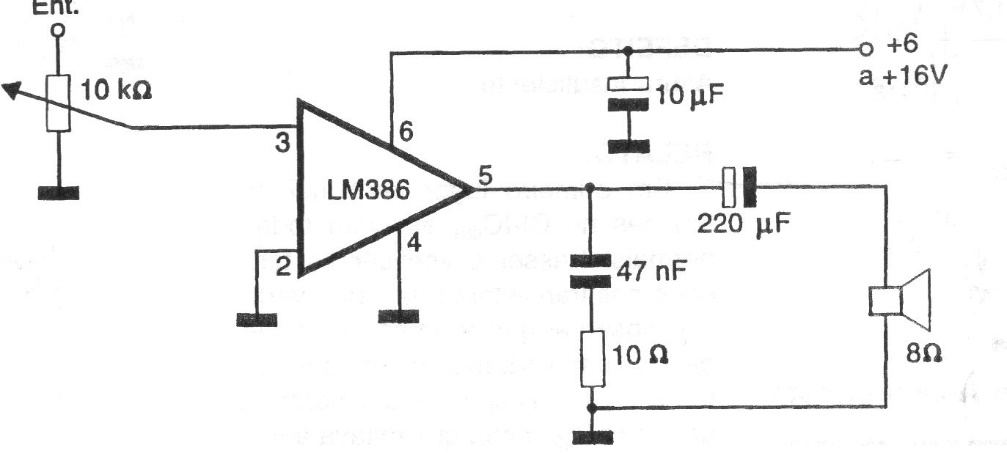

This circuit has appeared several times on this site in different applications. This is from 1997 documentation. The maximum power of 1 W comes with a 15 V supply and a load of 8 ohms. The circuit can be supplied with voltages from 6 to 15 V.
