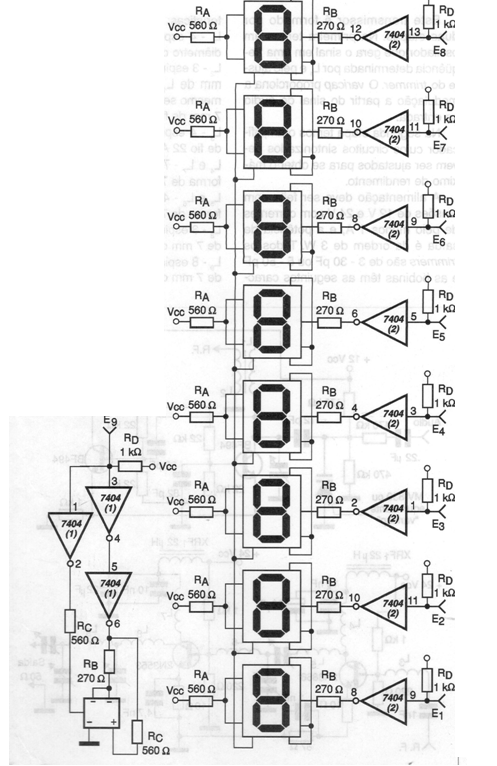

This circuit, from a 2002 documentation, checks the logic levels of the inputs, providing a digital indication of 0 or 1. The circuit must be powered with a 5 V source and has common anode displays.
