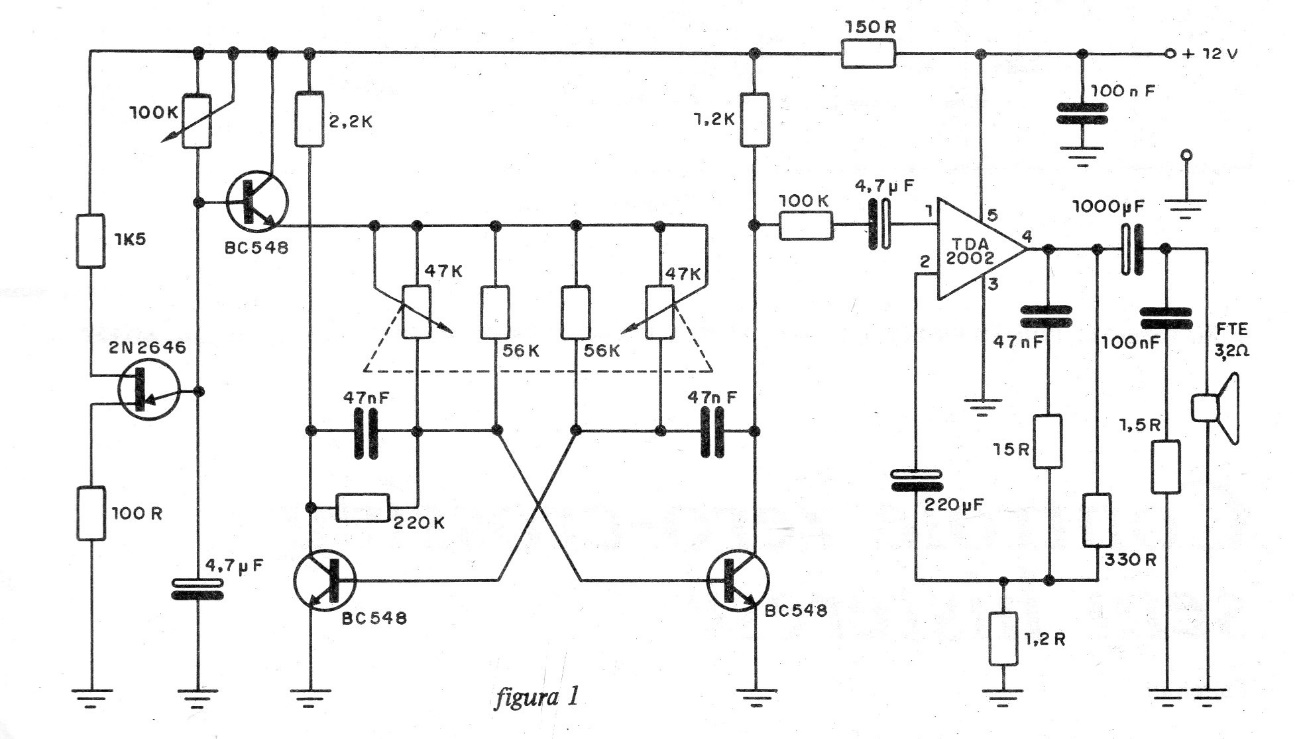

This interesting circuit, found in a 1986 publication, includes a powerful audio amplifier. Being powered by 12 V it can be installed in vehicles. Adjustments of the trimpots lead to the ideal sound for the circuit. The integrated circuit must be mounted on an appropriate heat sink.
