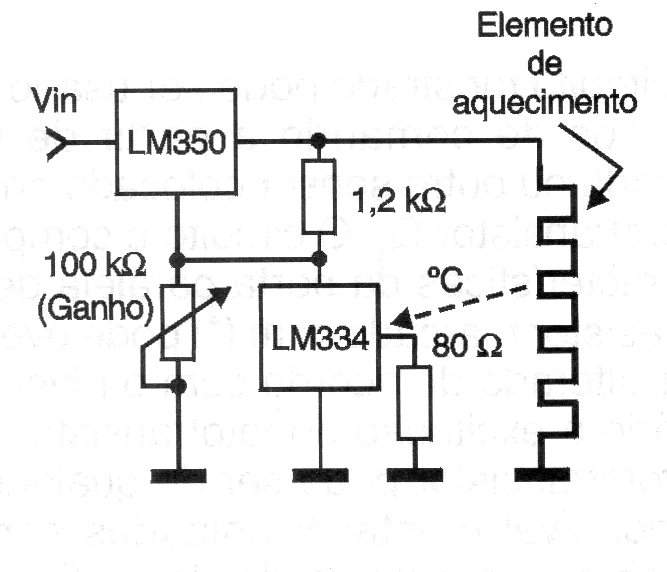

This configuration for 3 A currents with a maximum input voltage of 30 V appears elsewhere on this site, based on a National Semiconductor integrated circuit. The LM350 must be equipped with a heat radiator and the sensor circuit is the LM334.
