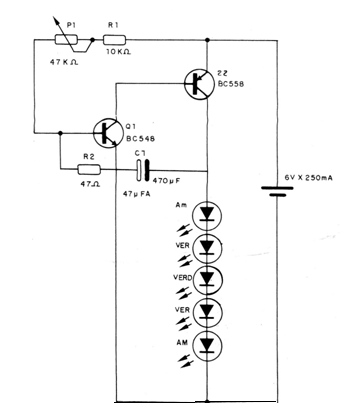

This traditional flasher configuration with two transistors drives 5 LEDs with a supply that must be at least 12 V. For fewer LEDs, the supply can be made with lower voltage. The frequency is controlled by P1.
LED Flasher (CB17077E)
- Details
- Written by: Newton C. Braga
