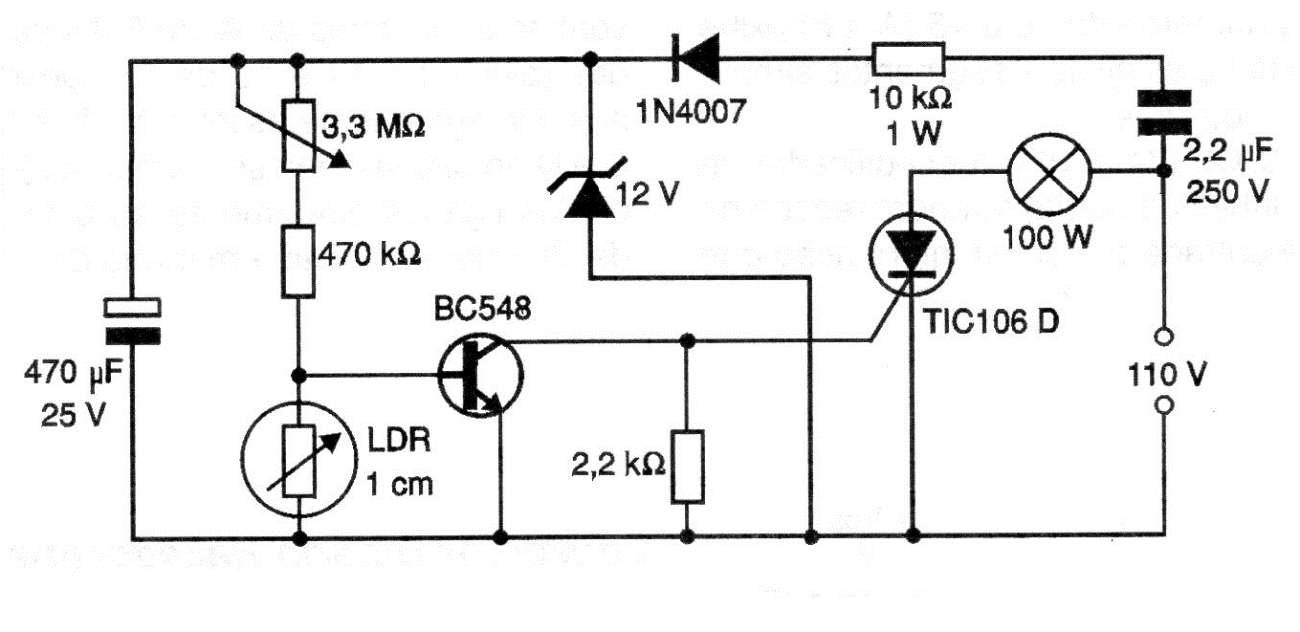

This circuit activates an incandescent lamp at dusk and goes out at dawn. The sensor is an LDR and the SCR must have a heat sink. The circuit does not work with other types of lamp and the sensitivity adjustment must be made in the potentiometer or trimpot.
