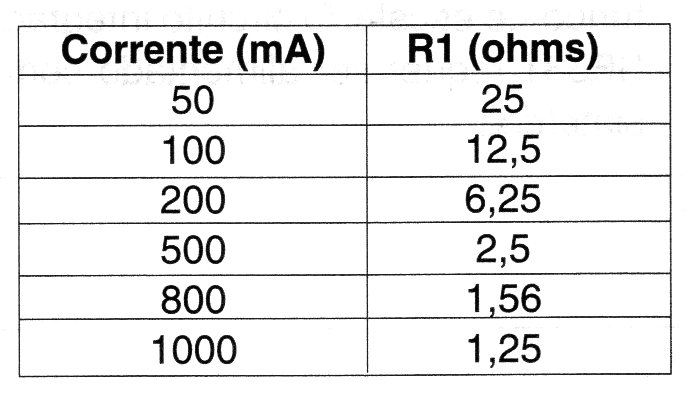

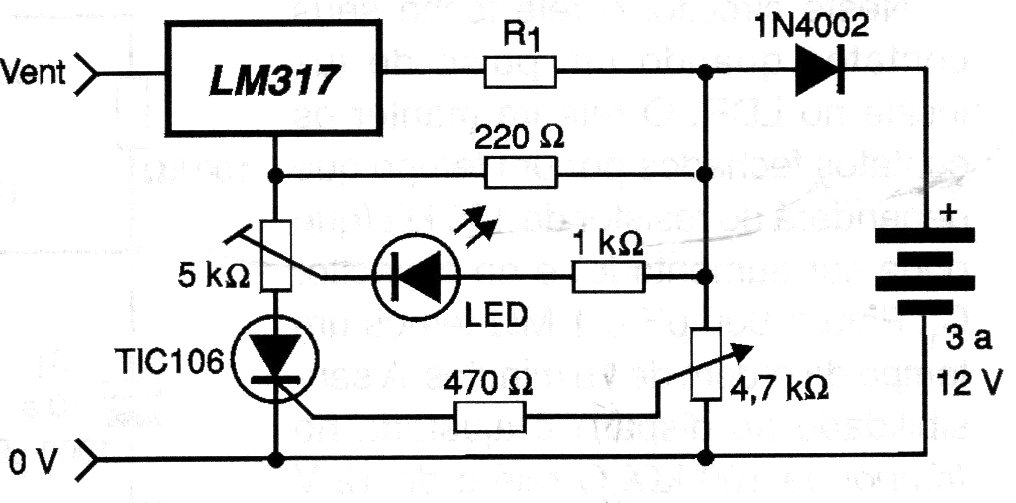

This is a simple circuit that we found in a 2001 documentation. The integrated circuit must be equipped with a heat sink and the maximum load current, according to the table depending on R1. The circuit disarms when the load is complete, which must be adjusted in the trimpot.
