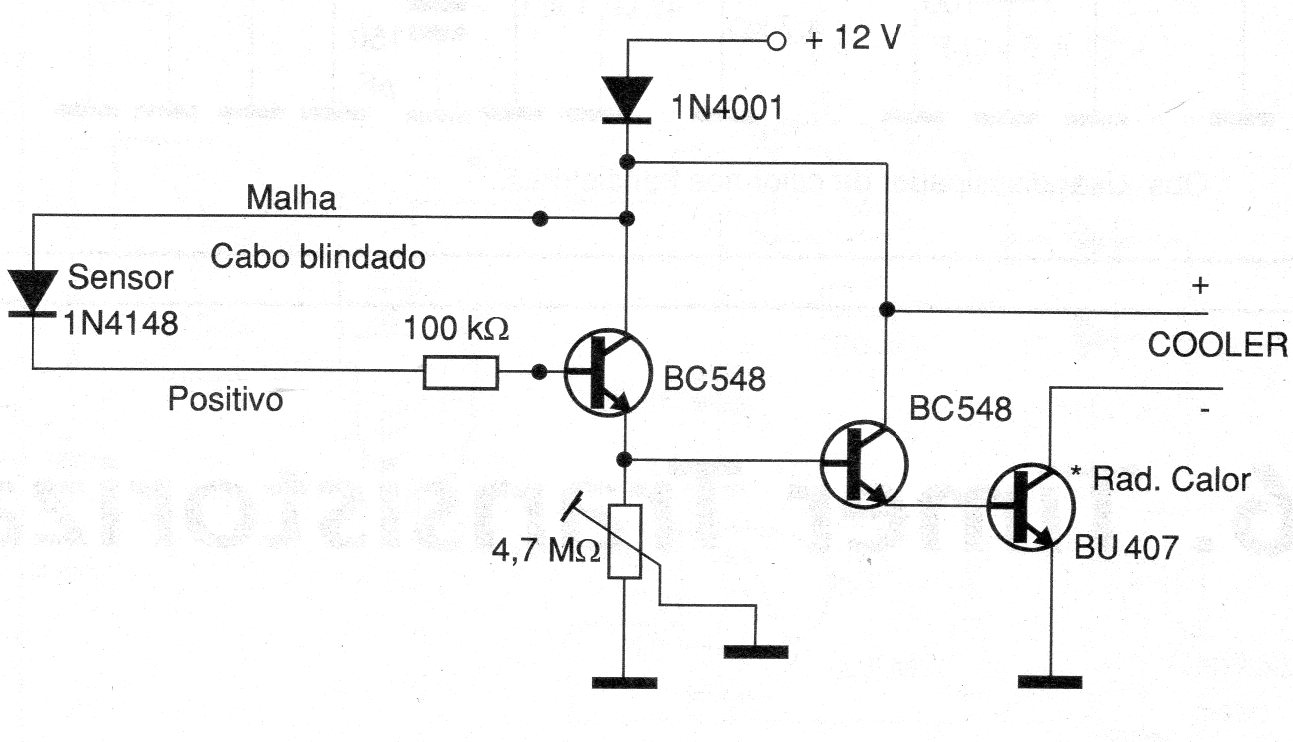

The sensor of this circuit is a common silicon diode and it directly drives a small cooler with a current of up to 2 or 3 A. The power transistor must be mounted on a heatsink and the 12 V supply. Adjusting the operating point is done in the trimpot.
