12 or 15 V to 9 or 6 V converter with 1.5 A (CB18031E)

Details
Written by: Newton C. Braga

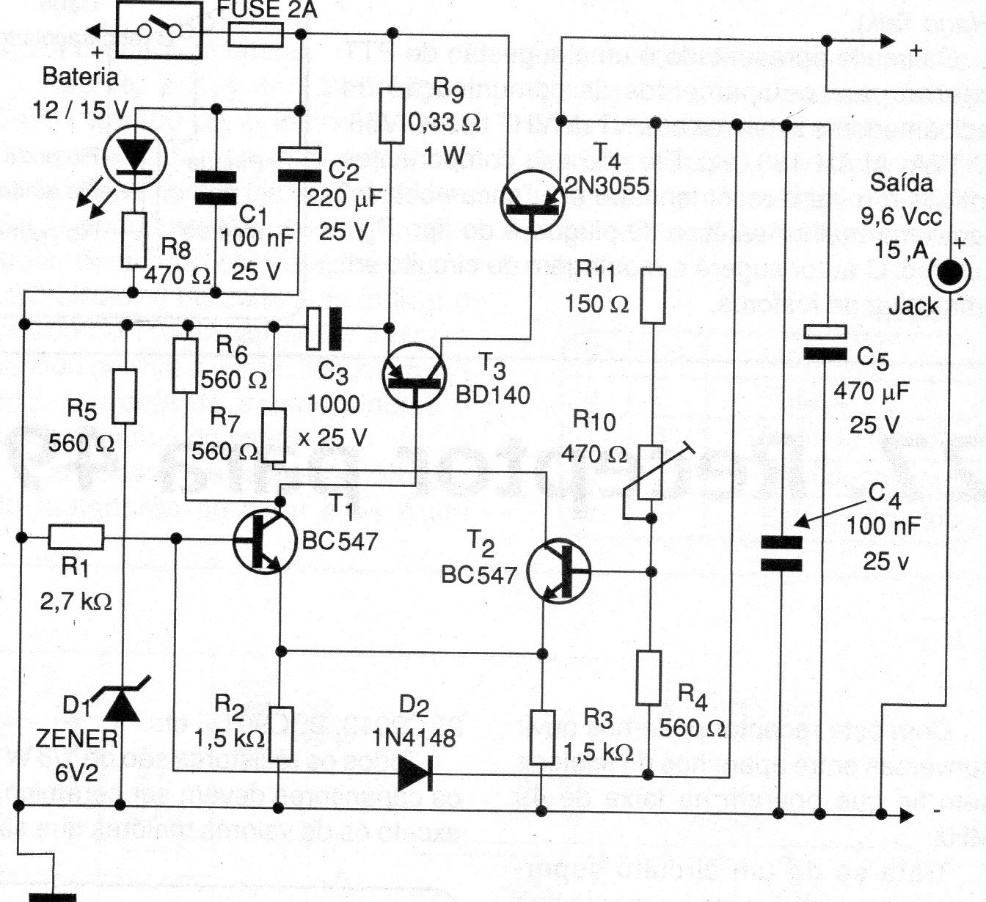

This circuit uses only transistors and was found in a 2003 documentation. Transistor 2N3055 must be mounted on a heat sink and the voltage is set to R10.
