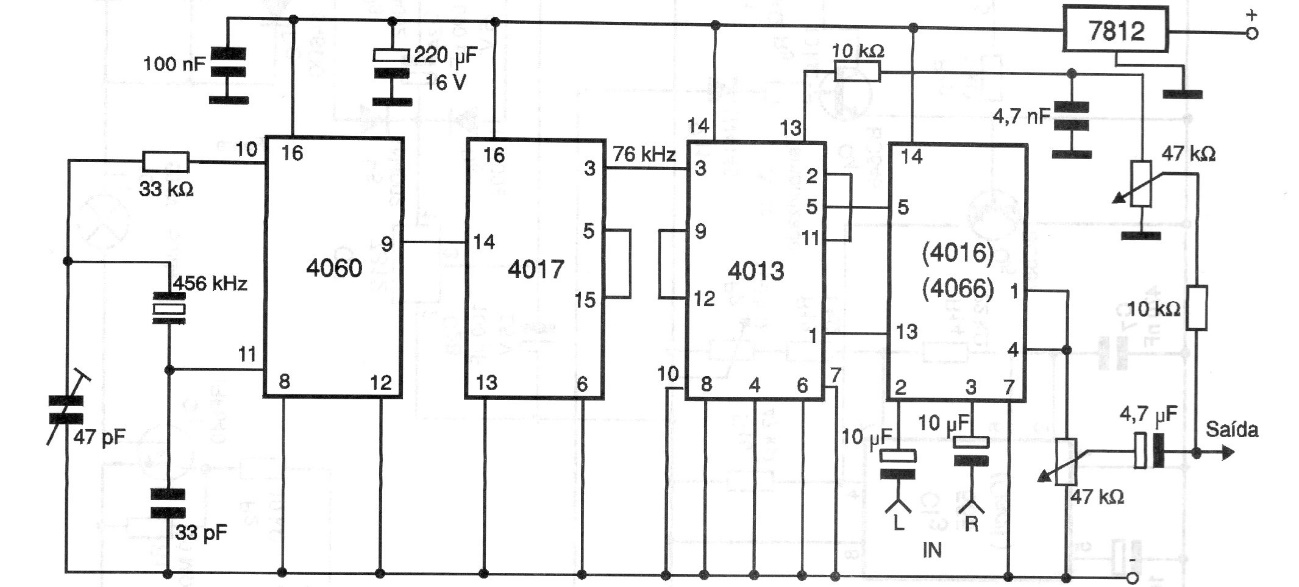

This circuit encodes the two channel signals from an amplifier for a multiplex-stereo transmission. The circuit works with any transmitter and the signals applied are of low intensity, such as those obtained at the output of mixers and preamps. The 15 V supply must have excellent filtration and the circuit includes a 12 V regulator.
