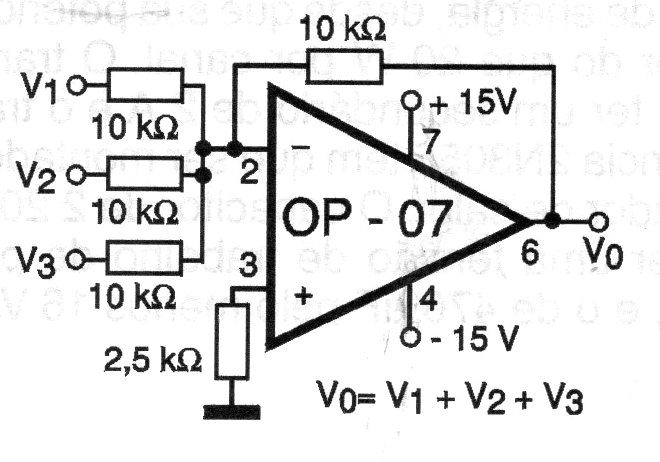

Adders appear several times on this site with operators of all types. In this circuit the output voltage is the sum of the input voltage, since as it does not exceed the supply voltage. The source must be symmetrical for the circuit to operate with negative voltages and other operational ones can be used.
