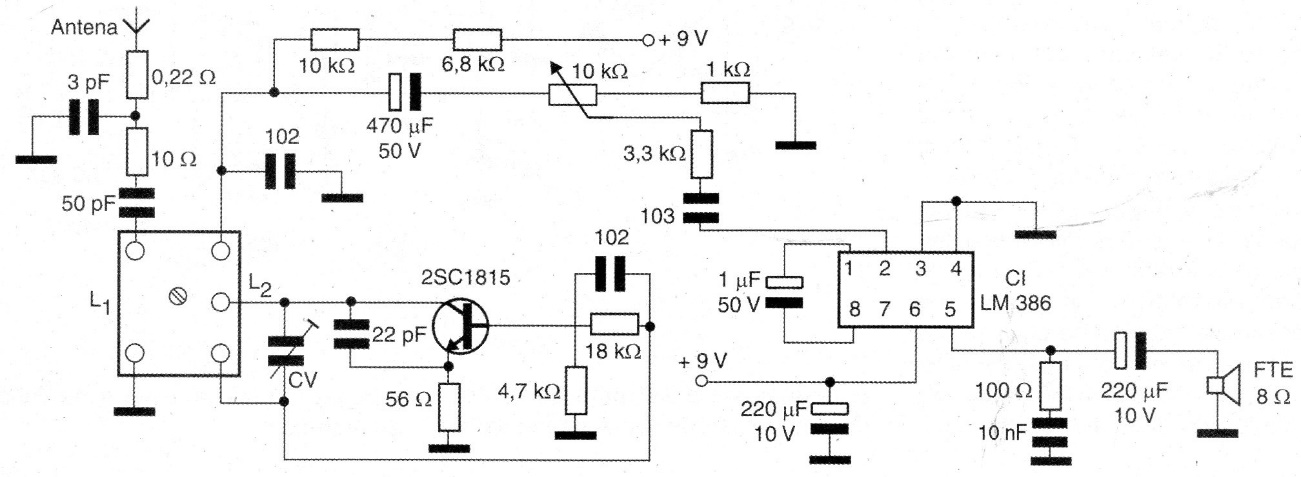

Signals from old cordless phones can be picked up with this circuit. L1 has 10 to 20 turns of 32 interlaced with L2 which consists of 30 + 30 turns of the same wire in an adjustable IF or radio or TV core. The circuit already has a small integrated amplifier, which can be powered by a source or batteries.
