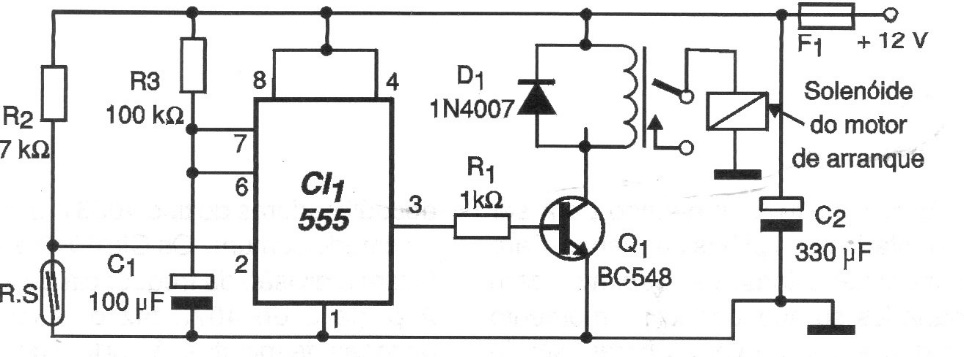

The purpose of this circuit is to enable the car or motorcycle starting system only for a certain time. The relay must have sufficient current to be able to control the starter system. The supply is made with 12 V which is the voltage of the used relay coil.
