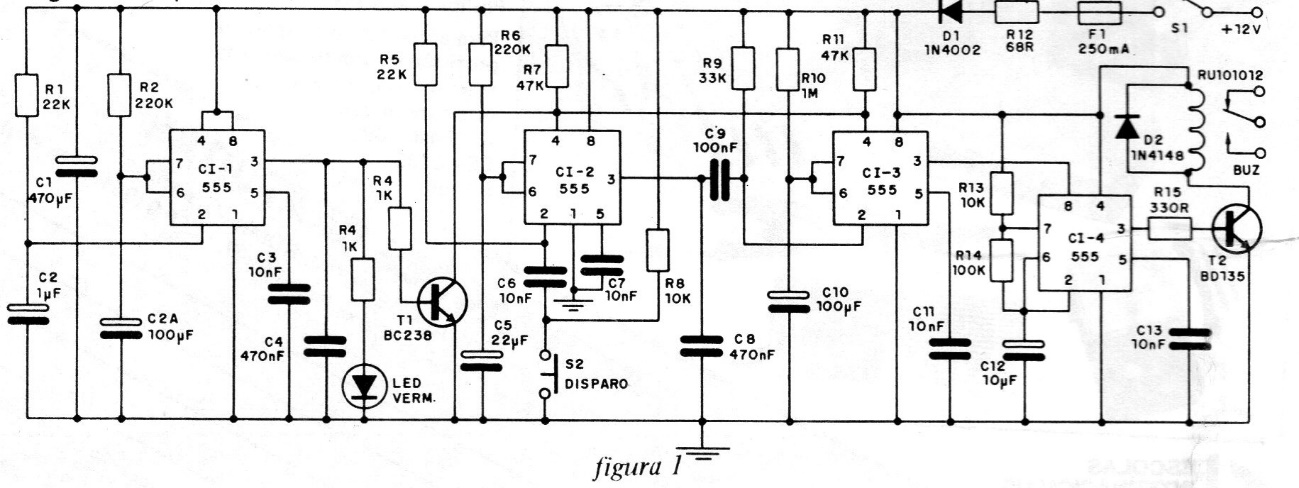

We found this circuit in a 1986 publication. However, as it is based entirely on 555 integrated circuits, its assembly is currently perfectly viable. It is a timed alarm system with intermittent action on a relay. The circuit is powered by 12 V, which is the operating voltage of the relay used.
| Clique na imagem para ampliar |
