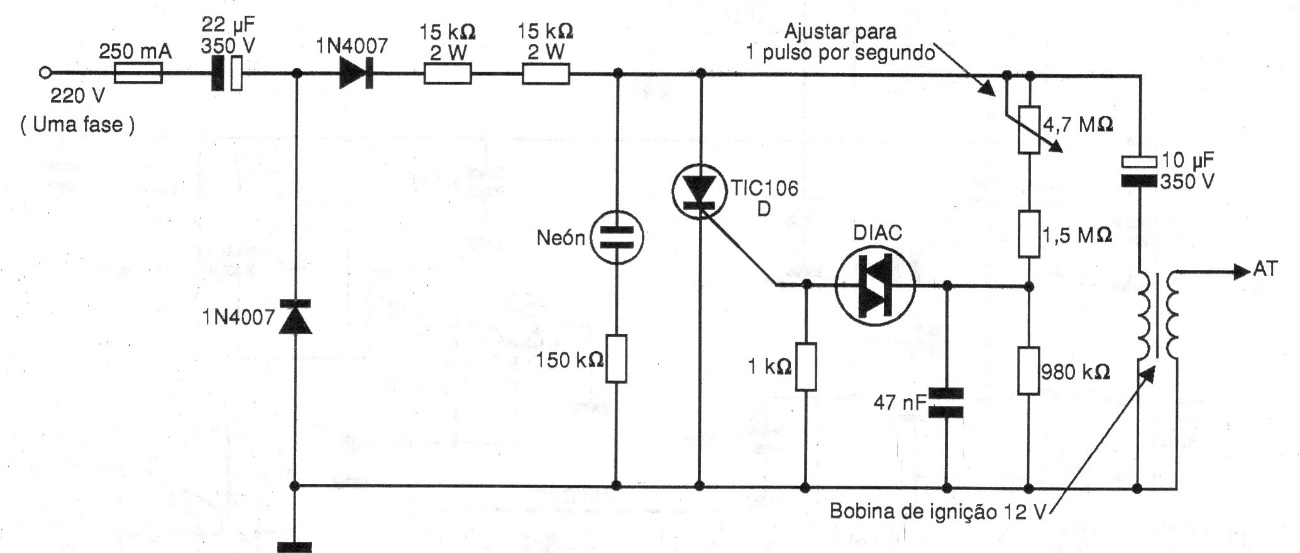

This circuit uses an ignition coil to generate the high voltage that electrifies a fence. However, in the 1999 original there is no provision for isolating the power grid, which is mandatory. This can be done through an isolation transformer or using a separate ground flyback to generate the high voltage.
| Clique na imagem para ampliar |
