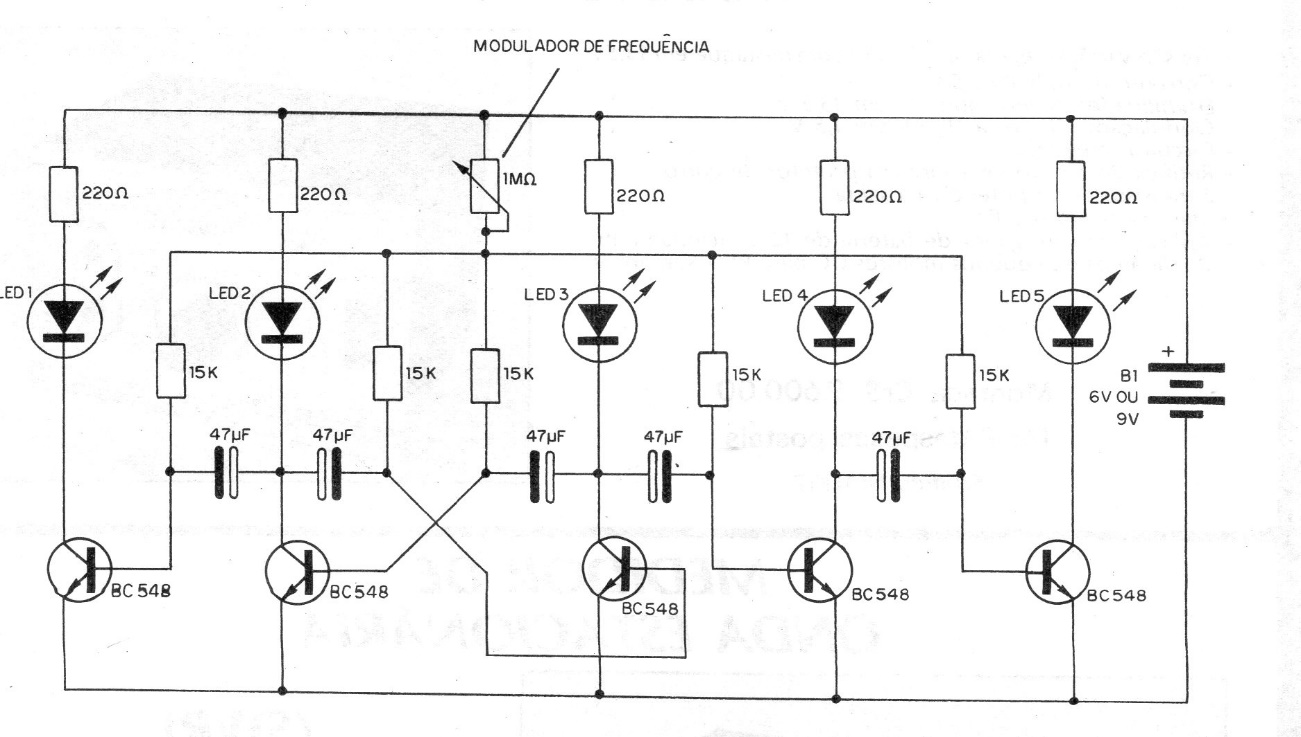

This simple circuit for experimental LED sequencing is based on a multivibrator with transistors. Adjustment of operation is done in the potentiometer and the supply can be made by voltages from 6 to 9 V.
| Clique na imagem para ampliar |
Experimental Sequential (CB18197E)
- Details
- Written by: Newton C. Braga
