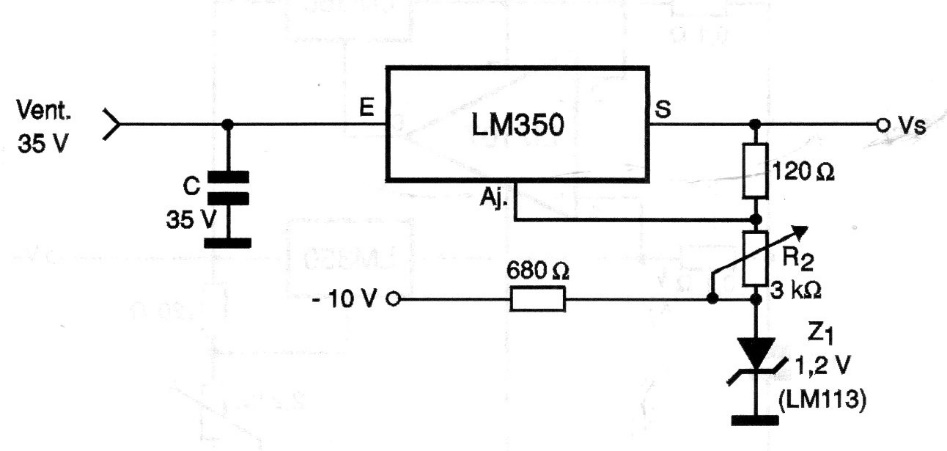

This version of the circuit is from 2000, using a source of negative voltage that allows to obtain output voltages from 0 V, which does not occur in normal applications where the voltage starts from 1.2 V. The voltage regulator must be mounted on an appropriate heat sink.
| Clique na imagem para ampliar |
