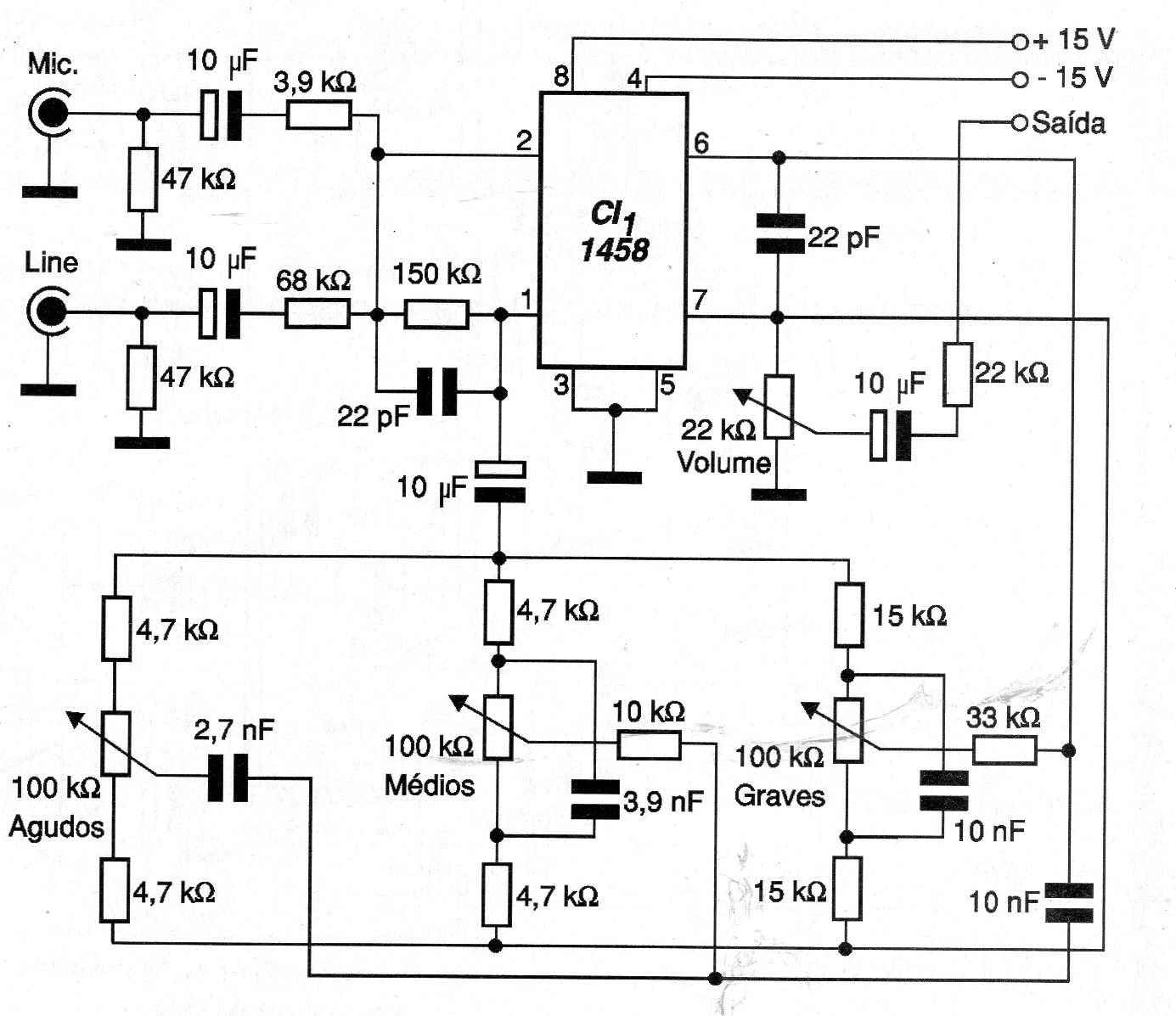

We found this circuit in a 2002 documentation. The circuit must be powered by a symmetrical source such as that described in CIR11014. The signal input and output cables must be shielded. The control of the signals is made through 4 potentiometers that act on low, medium, and treble in addition to the intensity (volume).
| Clique na imagem para ampliar |
