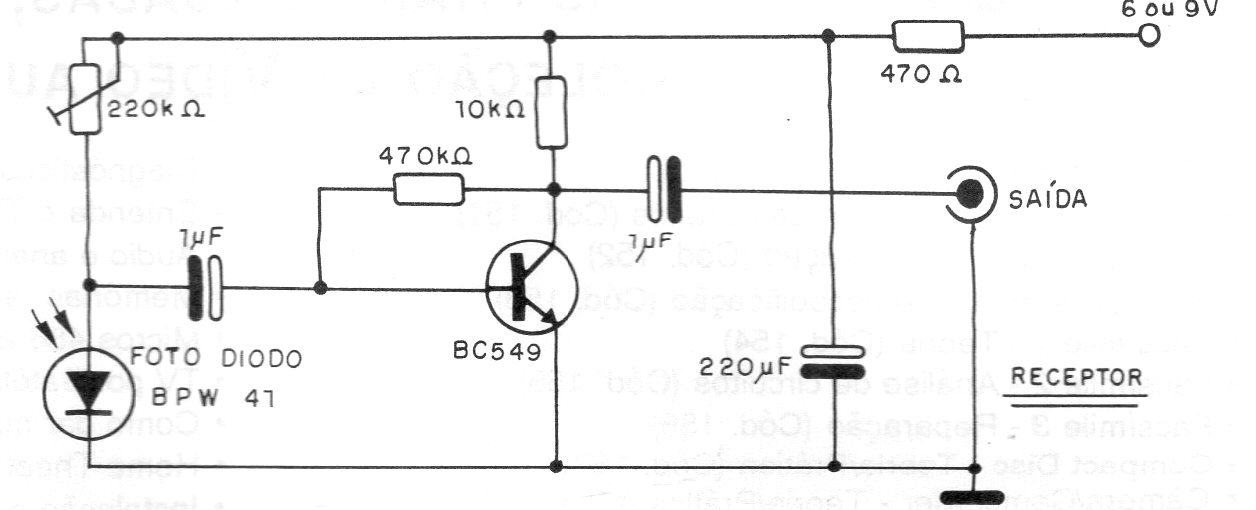

This circuit can be used to receive the signals from the CB17017E by applying them to an amplifier. The circuit is powered by 4 batteries and has a very low consumption. P1 adjusts the sensitivity and for higher performance, the photosensor must be installed in an opaque tube with a converging lens. Phototransistors can be used in place of the photodiode.
