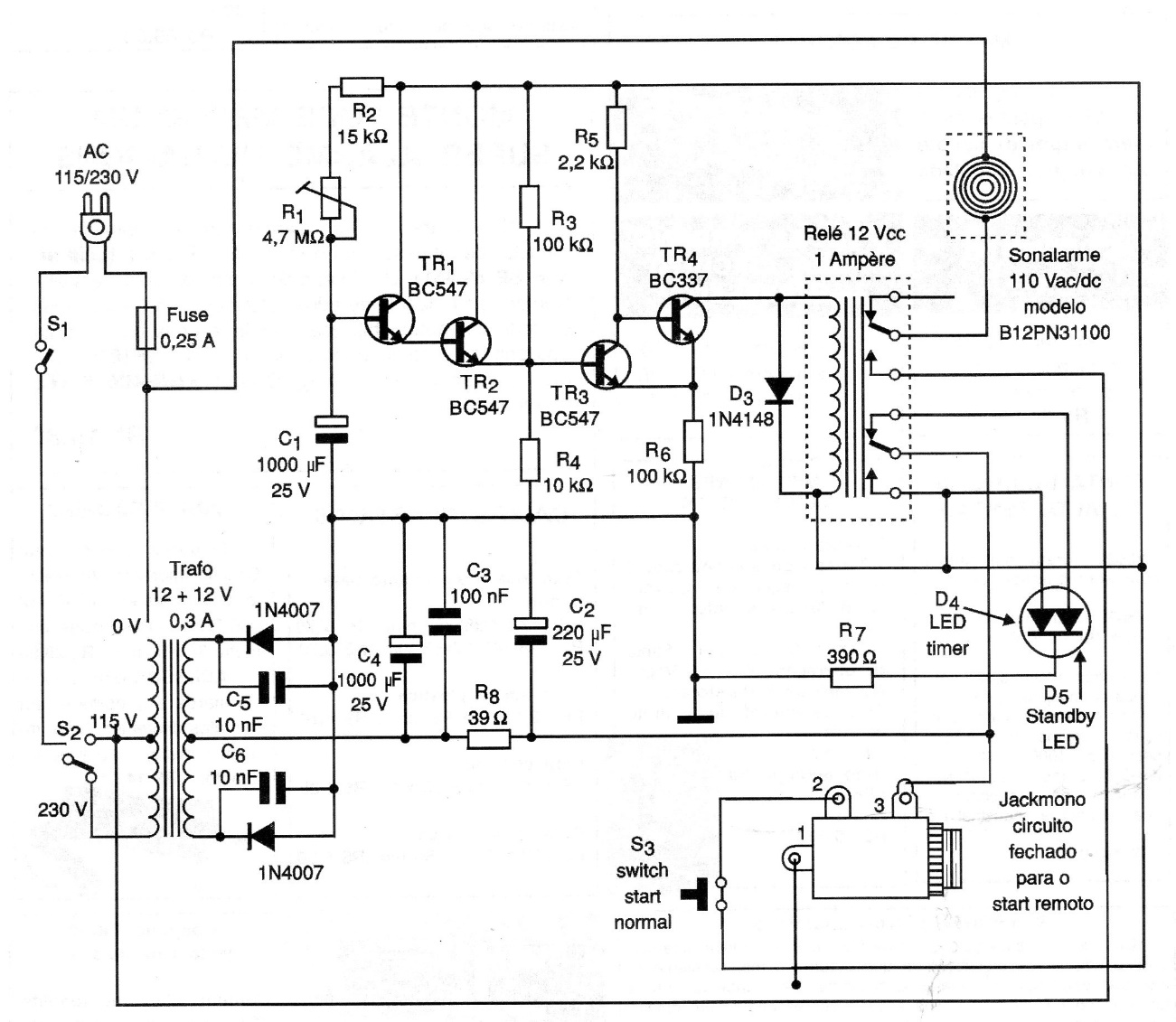

This circuit, which uses common components even today, was found in a 2001 documentation. It is an alarm designed to be used when entering and leaving garages. In the original project, a buzzer with a Sonalert-type oscillator was used, but an audio oscillator can be used instead.
| Clique na imagem para ampliar |
