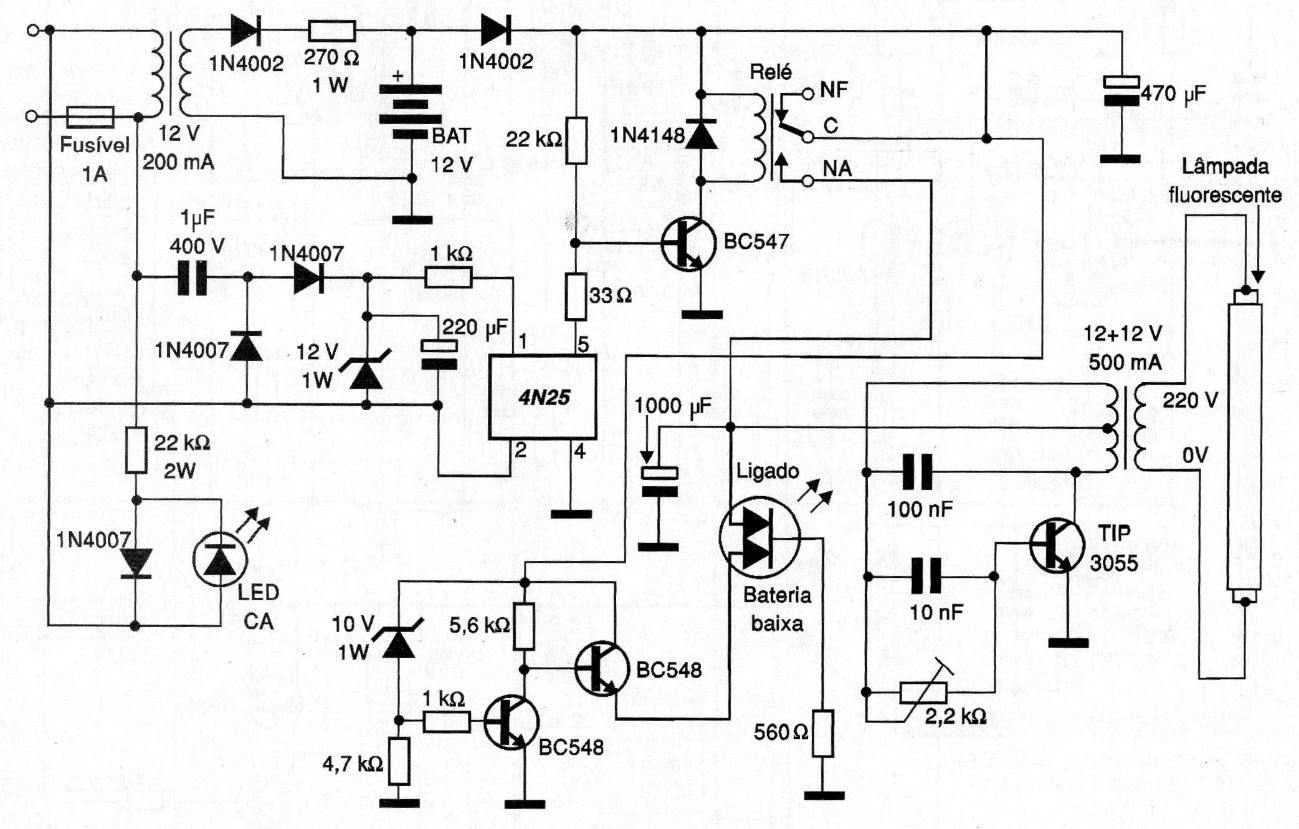

We found this circuit in a 2002 documentation. The circuit is an emergency lighting system with an inverter for a fluorescent lamp. The circuit is powered by a battery that remains at a constant charge.
| Clique na imagem para ampliar |
Emergency Lighting (CB18004E)
- Details
- Written by: Newton C. Braga
