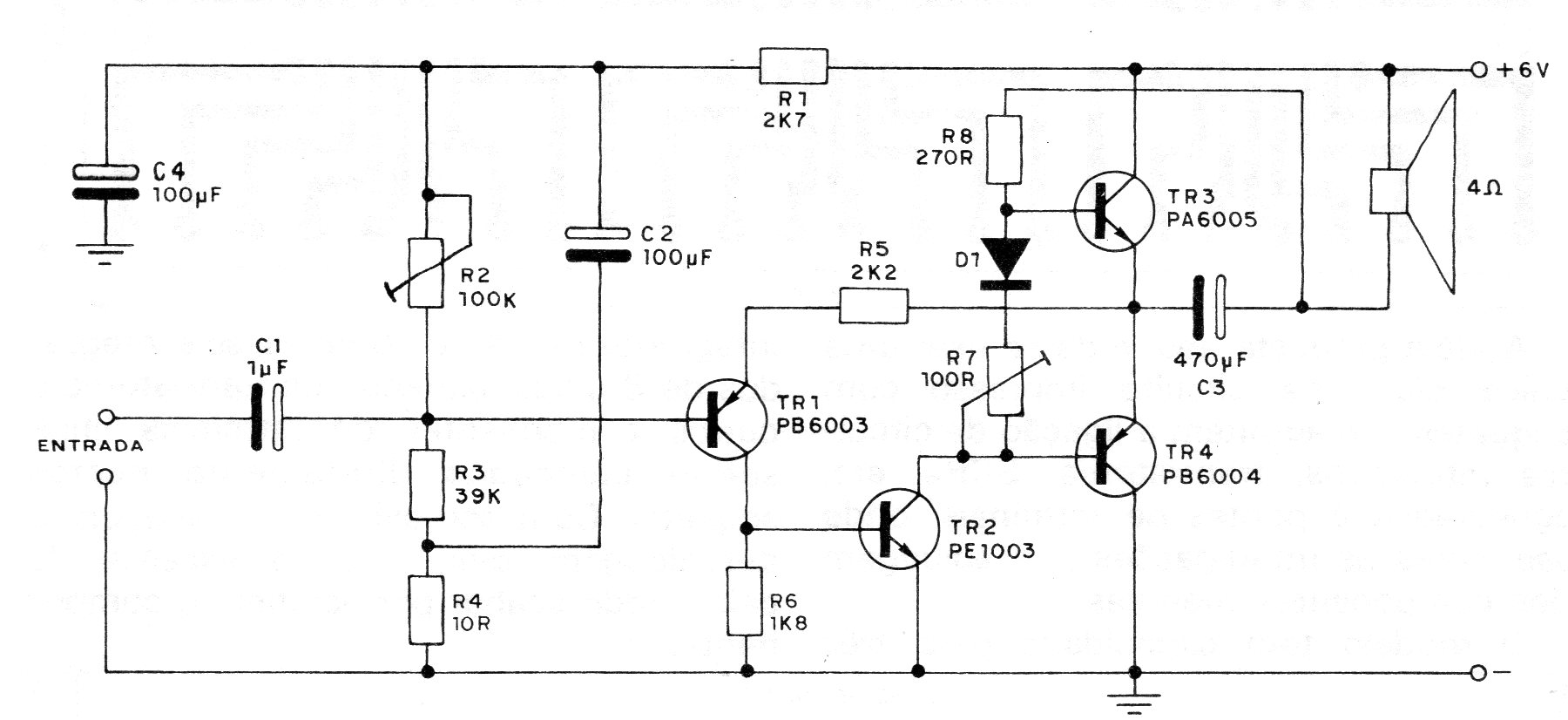

This good quality amplifier found in a 1982 documentation has a traditional complementary output configuration. The circuit is powered by a voltage of 6 V that can come from batteries. The original Philco transistors of that time can be replaced by the BD135 and BD136 equipped with small heat radiators.
| Clique na imagem para ampliar |
