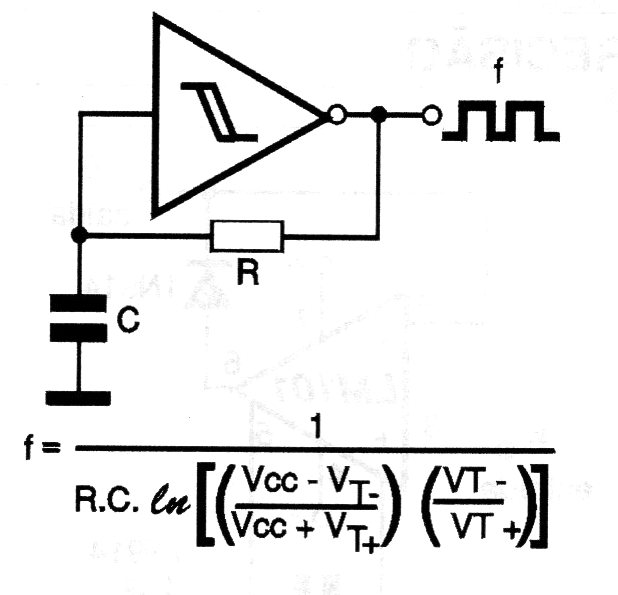

This circuit generates a signal whose frequency can be calculated using the formula next to the diagram. The maximum frequency depends on the logic used and the supply must be made by a voltage of 5 V. The output signal is rectangular.
TTL Oscillator (CB17565E)
- Details
- Written by: Newton C. Braga
