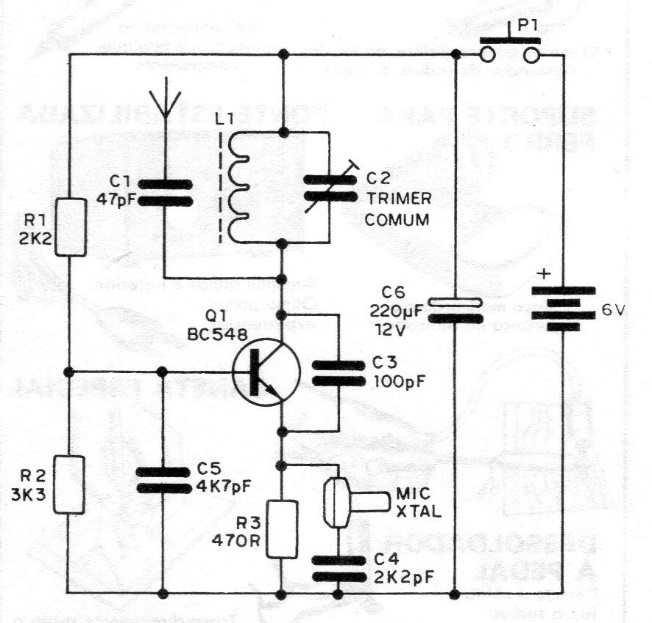

This experimental short-range transmitter uses a low-impedance microphone, low-impedance phone, or even a small speaker as a microphone. The circuit can be powered by 4 batteries or 9 V battery and the antenna is telescopic. The coil consists of 80 turns of wire 28 to 30 in a ferrite rod 10 to 20 cm long.
