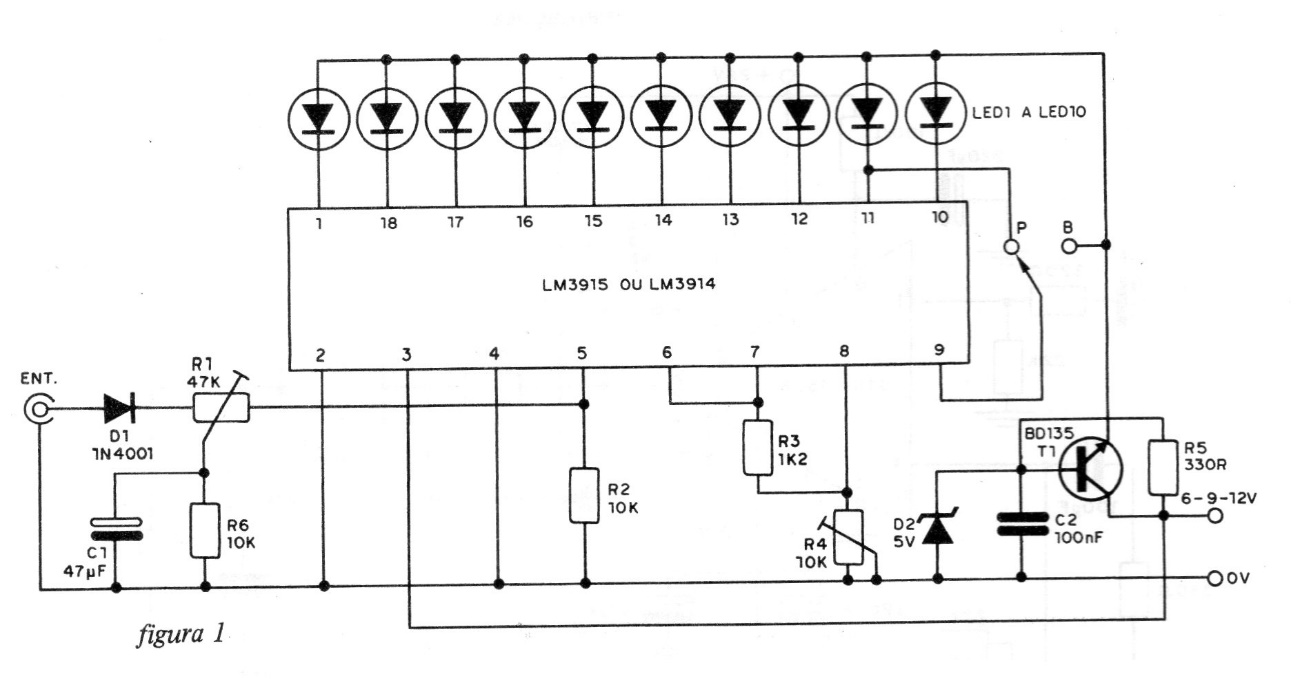

This circuit, which appears on our website in different versions, uses an integrated VU which is the LM3914 (mobile point) or LM3915 (mobile bar). The circuit is supplied with voltages from 6 to 12 V and adjustments are made by trimpots.
| Clique na imagem para ampliar |
