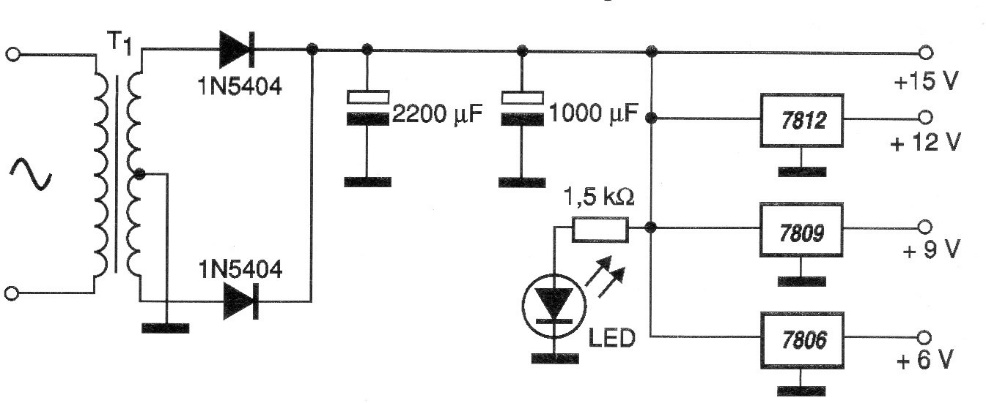

This simple source using fixed voltage regulators can supply currents up to 1 A at the voltages indicated in the diagram. Voltage regulators must be mounted on good heat sinks and the transformer has a 15 V secondary with 1 A.
