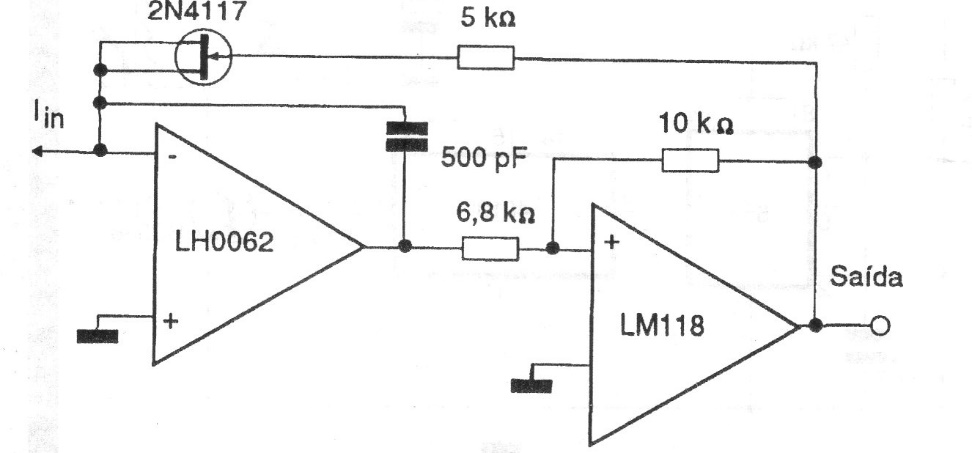

This circuit was found in documentation from National Semiconductor. Its purpose is to convert an input current into a signal up to 15 MHz. The source must be symmetrical with voltages between 5 and 15 V and the components used are not very common in the market today. The graph shows the performance of the circuit.
