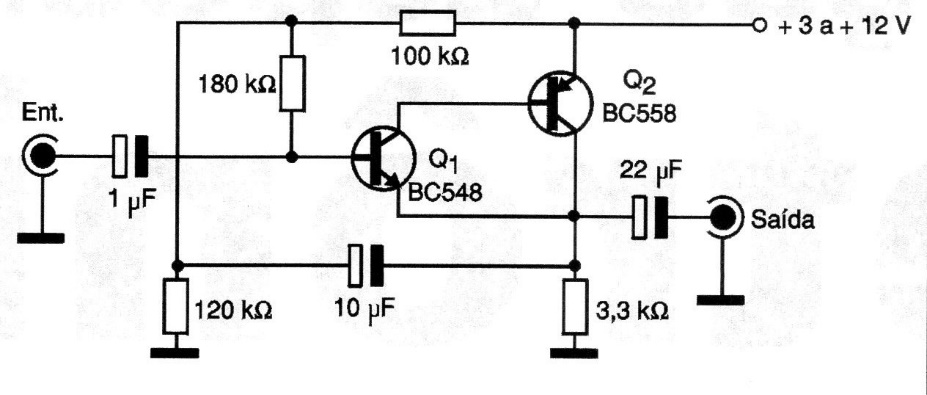

This circuit has a high input impedance and uses two transistors quite common in the market. Its supply can be made with voltages from 3 to 12 V which makes it ideal for applications powered by batteries.
| Clique na imagem para ampliar |
High Impedance Preamplifier (CB17191E)
- Details
- Written by: Newton C. Braga
