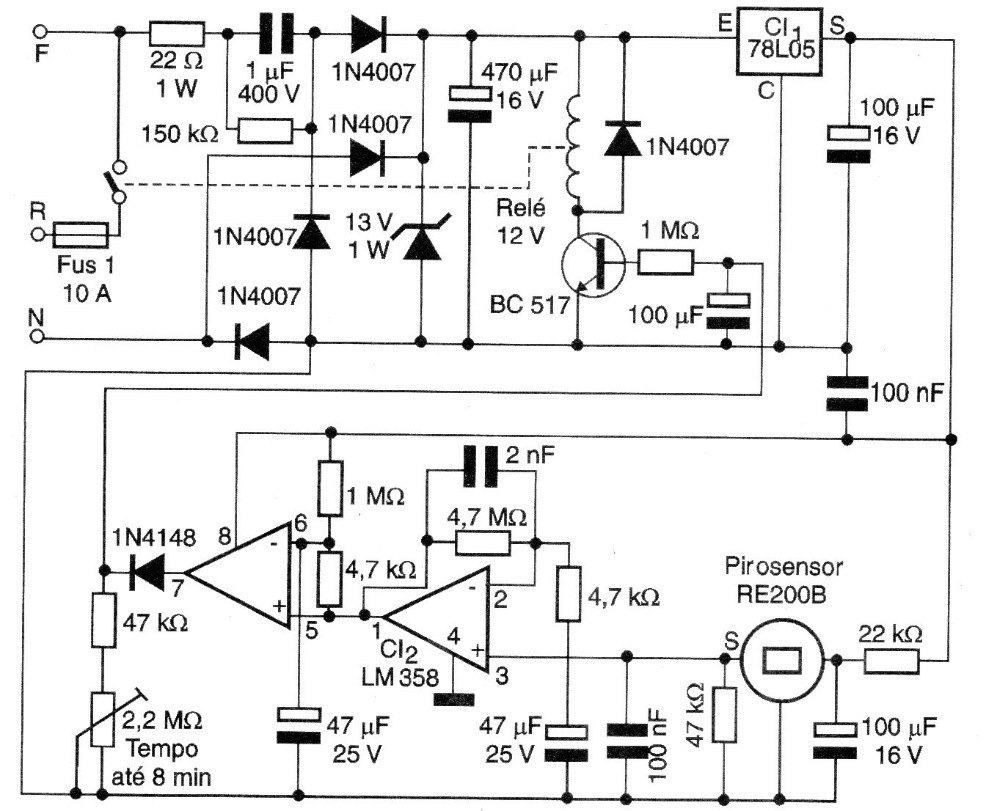

We found this circuit in a 2005 documentation. The circuit uses an infrared piezo sensor activating a relay. The circuit is critical, and the power supply used does not use a transformer. The sensor used can be difficult to find today.
| Clique na imagem para ampliar |
