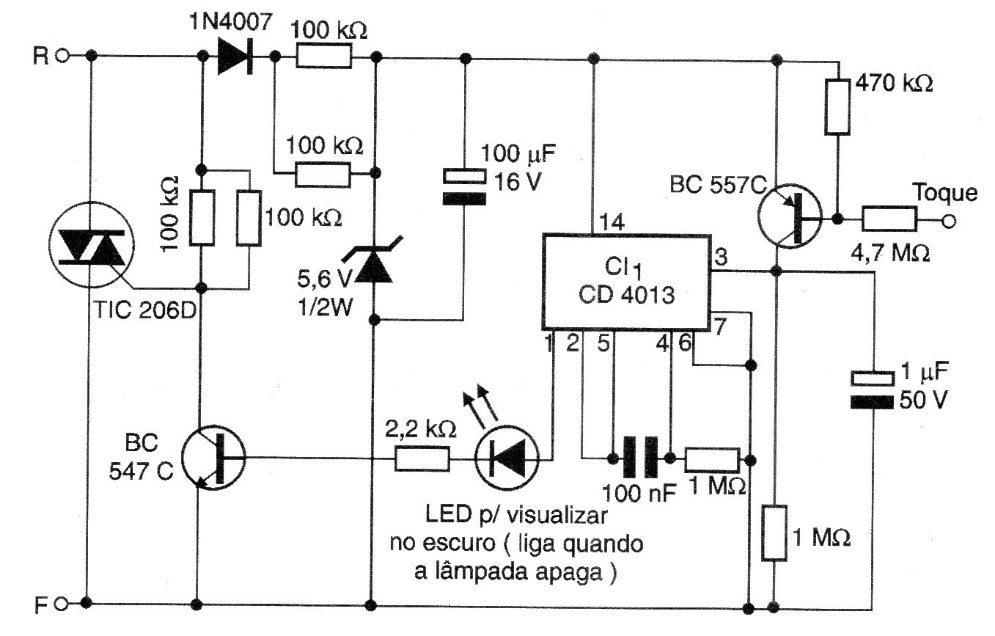

This bistable circuit can be used in several other automatisms, it should only be noted that there is no isolation from the power grid and that the load power depends on the triac used. We also noticed that this configuration is very sensitive to noise pickup, mainly due to the wire that connects the touch sensor. This wire, eventually, must be shielded. The circuit is from 2005 documentation and the triac must have a heat sink.
