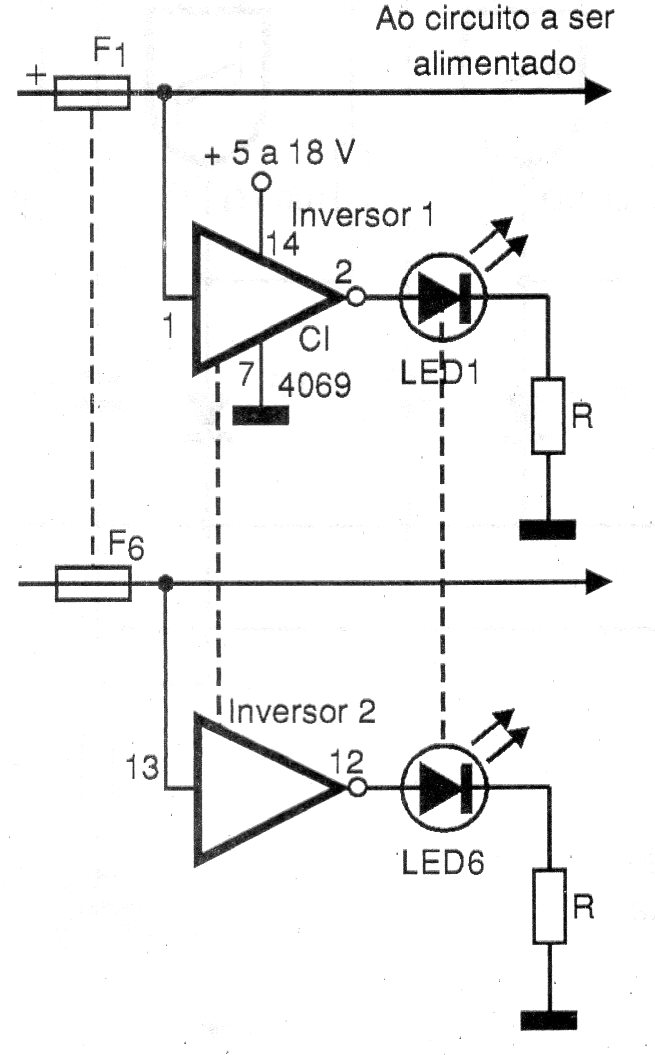

This simple blown fuse monitor circuit for DC circuits uses an inverter amplifier or even a voltage comparator. The circuit drives LEDs and can operate with voltages from 5 to 16 V.
| Clique na imagem para ampliar |
Open Fuse Monitor (CB17127E)
