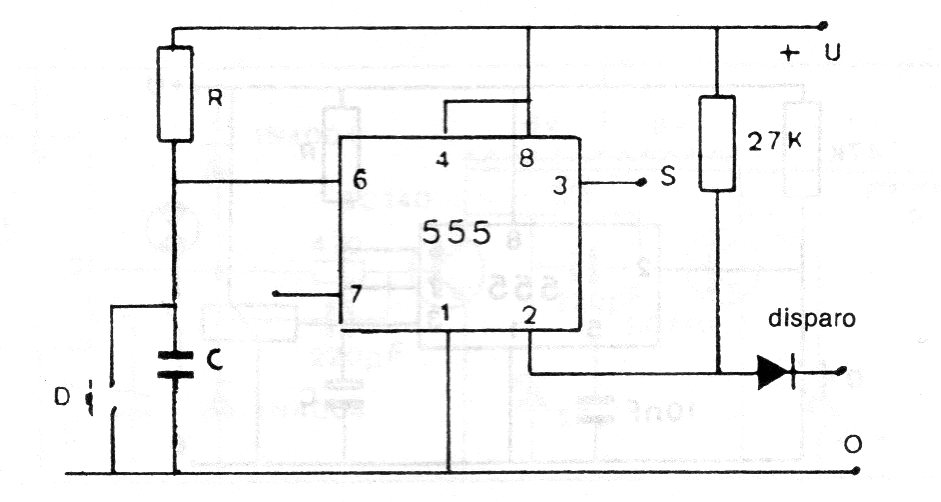

We show in the figure one more of the possible configurations to obtain the 555 retriggering. The time of this monostable is given by RC and the switch in parallel with C make the reset. The supply can be done with voltages from 5 to 15 V. The circuit can be used as a shield for microcontrollers.
